Class representing nodes that transform input data in 3D space. More...

#include <TransformNode.h>

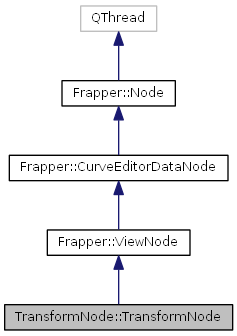

Inheritance diagram for TransformNode::TransformNode:

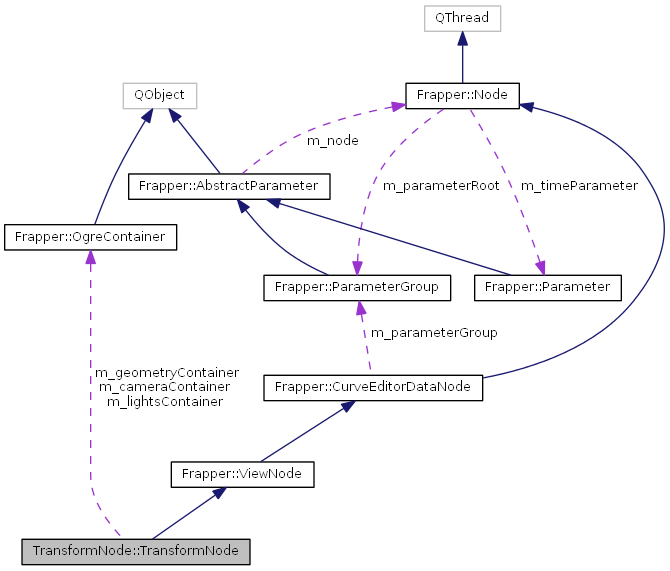

Collaboration diagram for TransformNode::TransformNode:

[legend]

Public Slots
void	processOutputGeometry ()
	Processes the input geometry to generate the node's output geometry.

void	processOutputLights ()
	Processes the input lights to generate the node's output lights.

void	processOutputCameras ()
	Processes the input cameras to generate the node's output cameras.

void	applyTranslation ()
	Applies the changed translation values to the scene nodes.

void	applyRotation ()
	Applies the changed rotation values to the scene nodes.

void	applyScale ()
	Applies the changed scale values to the scene nodes.

void	resetTransformation ()
	Resets the transformation parameters to their default values.

Public Slots inherited from Frapper::ViewNode
virtual void	setEvaluate (bool evaluate)
	Sets whether this node should be evaluated in the network.

virtual void	setView (bool view, bool suppressViewSetSignal=false)
	Sets whether the geometry of this node should be displayed in the viewport.

void	setStageIndex (unsigned int stageIndex)
	Sets the index of the stage in which this node should be contained.

Public Member Functions
	TransformNode (const QString &name, ParameterGroup *parameterRoot)
	Constructor of the TransformNode class.

virtual	~TransformNode ()
	Destructor of the TransformNode class.

virtual Ogre::SceneNode *	getSceneNode ()
	Returns the scene node that contains scene objects created or modified by this node.

virtual double	getBoundingSphereRadius ()
	Returns the radius of the bounding sphere surrounding this object.

virtual void	evaluateConnection (Connection *connection)
	Evaluates the given new connection for the node.

Public Member Functions inherited from Frapper::ViewNode
	ViewNode (const QString &name, ParameterGroup *parameterRoot)
	Constructor of the ViewNode class.

virtual	~ViewNode ()
	Destructor of the ViewNode class.

unsigned int	getStageIndex () const
	Returns the index of the stage in which this node is contained.

bool	isViewed () const
	Returns whether the result of this node should be displayed in the viewport.

virtual Ogre::TexturePtr	getImage ()
	Returns the image that is generated by this node.

Public Member Functions inherited from Frapper::CurveEditorDataNode
	CurveEditorDataNode (const QString &name, ParameterGroup *parameterRoot)
	Constructor of the CurveEditorDataNode class.

virtual	~CurveEditorDataNode ()
	Destructor of the CurveEditorDataNode class.

ParameterGroup *	getCurveEditorGoup () const
	Public Functions.

void	setCurveEditorGoup (ParameterGroup *parameterGroup)

Public Member Functions inherited from Frapper::Node
	Node (const QString &name, ParameterGroup *parameterRoot)
	Constructor of the Node class.

virtual	~Node ()
	Destructor of the Node class.

virtual void	run (const QString &parameterName)
	Execute function for threading.

virtual bool	process (const QString &parameterName)
	Processes the node's input data to generate the data for the parameter with the given name.

bool	getTypeUnknown () const

Parameter *	getTimeParameter () const
	Returns the actual timeline intex.

QString	getName () const
	Returns the name of the node. The name must be unique in the node network so that each node object can be uniquely identified by its name.

void	setName (const QString &name)
	Sets the name of the node. The name must be unique in the node network so that each node object can be uniquely identified by its name.

QString	getTypeName () const
	Returns the name of the node's type.

void	setTypeName (const QString &typeName)
	Set the name of the node's type.

bool	isTypeUnknown () const
	Returns whether a plugin for the node's type is available.

void	setTypeUnknown (bool typeUnknown=true)
	Sets the flag that indicates whether a plugin for the node's type is available.

bool	isEvaluated () const
	Returns whether this node should be evaluated in the network.

bool	isSelected () const
	Returns whether this node is currently selected.

virtual void	setSelected (bool selected)
	Sets whether this node is currently selected.

bool	isSelfEvaluating () const
	Returns whether the node is self-evaluating.

bool	isSaveable () const
	Returns whether the node is saveable.

void	setSelfEvaluating (bool selfEvaluating)
	Sets whether the node is self-evaluating.

void	setSaveable (bool saveable)
	Sets whether the node is saveable.

QString	getSearchText () const
	Returns the search text currently set for the node.

void	setSearchText (const QString &searchText)
	Sets the text to use when filtering parameters of the node before creating editing widgets in a parameter editor panel.

ParameterGroup *	getParameterRoot () const
	Returns the root of the tree of parameters and parameter groups for the node.

ParameterGroup *	getParameterGroup (const QString &name) const
	Returns the parameter group with the given name.

void	fillParameterLists (AbstractParameter::List inputParameters, AbstractParameter::List outputParameters)
	Iterates over the children of the parameter root and fills the given lists with input and output parameters and parameter groups containing input and output parameters.

void	fillParameterLists (AbstractParameter::List connectedInputParameters, AbstractParameter::List connectedOutputParameters, bool unconnectedInputParametersAvailable, bool unconnectedOutputParametersAvailable)
	Iterates over the children of the parameter root and fills the given lists with connected input and output parameters and parameter groups containing connected input and output parameters.

AbstractParameter::List	getParameters (Parameter::PinType pinType, bool connected, ParameterGroup *parameterGroup=0)
	Returns a list of parameters contained in the given parameter group that are of the given pin type and that are connected or not.

bool	hasParameter (const QString &name) const
	Returns whether the node contains a parameter with the given name.

Parameter *	getParameter (const QString &name) const
	Returns the parameter with the given name.

NumberParameter *	getNumberParameter (const QString &name) const
	Returns the number parameter with the given name.

FilenameParameter *	getFilenameParameter (const QString &name) const
	Returns the filename parameter with the given name.

EnumerationParameter *	getEnumerationParameter (const QString &name) const
	Returns the enumeration parameter with the given name.

GeometryParameter *	getGeometryParameter (const QString &name) const
	Returns the geometry parameter with the given name.

LightParameter *	getLightParameter (const QString &name) const
	Returns the light parameter with the given name.

CameraParameter *	getCameraParameter (const QString &name) const
	Returns the camera parameter with the given name.

void	setDirty (const QString &name, bool dirty)
	Sets the dirty state of the parameter with the given name to the given state.

void	setDirty (bool dirty)
	Sets the dirty state of the node and all child parameters.

void	setNodeDirty (bool dirty)
	Sets the dirty state of the node.

bool	isNodeDirty ()
	Returns the dirty state of the node.

void	removeParameter (const QString &name, bool diveInGroups=true)
	Removes and deletes the parameter with the given name.

void	removeParameter (Parameter *parameter, bool diveInGroups=true)
	Removes and deletes the given parameter.

void	addAffection (const QString &parameterName, const QString &affectedParameterName)
	Adds a affection between two parameters.

QVariant	getValue (const QString &name, bool triggerEvaluation=false)
	Returns the value of the parameter with the given name while optionally triggering the evaluation chain.

bool	getBoolValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a boolean parameter while optionally triggering the evaluation chain.

int	getIntValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an integer parameter while optionally triggering the evaluation chain.

unsigned int	getUnsignedIntValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an unsigned integer parameter while optionally triggering the evaluation chain.

float	getFloatValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a 32bit-precision floating point parameter while optionally triggering the evaluation chain.

double	getDoubleValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a double-precision floating point parameter while optionally triggering the evaluation chain.

QString	getStringValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a string parameter while optionally triggering the evaluation chain.

QColor	getColorValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a color parameter while optionally triggering the evaluation chain.

Ogre::Vector3	getVectorValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an OGRE vector parameter while optionally triggering the evaluation chain.

Ogre::SceneNode *	getSceneNodeValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a scene node parameter while optionally triggering the evaluation chain.

Ogre::TexturePtr	getTextureValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an OGRE texture parameter while optionally triggering the evaluation chain.

ParameterGroup *	getGroupValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a parameter group parameter while optionally triggering the evaluation chain.

void	setValue (const QString &name, const QVariant &value, bool triggerDirtying=false)
	Sets the value of the parameter with the given name to the given value while optionally triggering the dirtying chain.

void	setValue (const QString &name, bool value, bool triggerDirtying=false)
	Convenience function for setting the value of a boolean parameter while optionally triggering the dirtying chain.

void	setValue (const QString &name, int value, bool triggerDirtying=false)
	Convenience function for setting the value of an integer parameter while optionally triggering the dirtying chain.

void	setValue (const QString &name, unsigned int value, bool triggerDirtying=false)
	Convenience function for setting the value of an unsigned integer parameter while optionally triggering the dirtying chain.

void	setValue (const QString &name, double value, bool triggerDirtying=false)
	Convenience function for setting the value of a double-precision floating point parameter while optionally triggering the dirtying chain.

void	setValue (const QString &name, char *value, bool triggerDirtying=false)
	Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.

void	setValue (const QString &name, const char *value, bool triggerDirtying=false)
	Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.

void	setValue (const QString &name, const QString &value, bool triggerDirtying=false)
	Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.

void	setValue (const QString &name, const QColor &value, bool triggerDirtying=false)
	Convenience function for setting the value of a color parameter while optionally triggering the dirtying chain.

void	setValue (const QString &name, const Ogre::Vector3 &value, bool triggerDirtying=false)
	Convenience function for setting the value of an OGRE vector parameter while optionally triggering the dirtying chain.

void	setValue (const QString &name, Ogre::SceneNode *value, bool triggerDirtying=false)
	Convenience function for setting the value of a scene node parameter while optionally triggering the dirtying chain.

void	setValue (const QString &name, const Ogre::TexturePtr value, bool triggerDirtying=false)
	Convenience function for setting the value of an OGRE texture parameter while optionally triggering the dirtying chain.

void	setValue (const QString &name, ParameterGroup *value, bool triggerDirtying=false)
	Convenience function for setting the value of a parameter group parameter while optionally triggering the dirtying chain.

void	setParameterEnabled (const QString &name, bool enabled)
	Convenience function for setting the enabled flag of a string parameter.

void	setChangeFunction (const QString &name, const char *changeFunction)
	Sets the function to call when a parameter's value changes.

void	setProcessingFunction (const QString &name, const char *processingFunction)
	Sets the function to use for computing a parameter's value.

void	setAuxProcessingFunction (const QString &name, const char *processingFunction)
	Sets the auxiliary function to use for computing a parameter's value.

void	setCommandFunction (const QString &name, const char *commandFunction)
	Sets the function to use for executing the command represented by a parameter.

void	setOnConnectFunction (const QString &name, const char *onConnectFunction)
	Sets the function which should be called on parameter's connection.

void	setOnDisconnectFunction (const QString &name, const char *onDisconnectFunction)
	Sets the function which should be called on parameter's disconnection.

void	notifyChange ()
	Notify when something has changed in the node. (Parameters added/deleted)

virtual void	setUpTimeDependencies (Parameter *timeParameter)
	Sets up time dependencies for node parameters.

void	deleteConnection (Connection *connection)
	Signal that is emitted in order to delete a connection (through SceneModel)

void	renderSingleFrame ()
	Render a single frame.

Static Protected Attributes
static const QString	InputGeometryParameterName = "Geometry to Transform"
	The name of the input geometry parameter.

static const QString	InputLightsParameterName = "Lights to Transform"
	The name of the input lights parameter.

static const QString	InputCamerasParameterName = "Cameras to Transform"
	The name of the input cameras parameter.

static const QString	OutputGeometryParameterName = "Transformed Geometry"
	The name of the output geometry parameter.

static const QString	OutputLightsParameterName = "Transformed Lights"
	The name of the output lights parameter.

static const QString	OutputCamerasParameterName = "Transformed Cameras"
	The name of the output cameras parameter.

Private Attributes
Ogre::SceneManager *	m_sceneManager
	The scene manager handling all OGRE objects.

Ogre::SceneNode *	m_geometrySceneNode
	The scene node to which input entities will be attached.

OgreContainer *	m_geometryContainer
	The container for the scene node.

Ogre::SceneNode *	m_lightsSceneNode
	The scene node to which input lights will be attached.

OgreContainer *	m_lightsContainer
	The container for the lights.

Ogre::SceneNode *	m_cameraSceneNode
	The scene node to which the input camera will be attached.

OgreContainer *	m_cameraContainer
	The container for the camera.

Additional Inherited Members
Signals inherited from Frapper::ViewNode
void	triggerRedraw ()
	Trigger redraw of ogre scene.

void	viewSet (unsigned int stageIndex, ViewNode *viewNode)
	Signal that is emitted when the view flag of this node has been set.

void	viewNodeUpdated ()
	Signal that is emitted when the currently viewed view node has been updated.

Static Public Attributes inherited from Frapper::Node
static int	s_numberOfInstances

static int	s_totalNumberOfInstances

Protected Member Functions inherited from Frapper::ViewNode
void	addOutputParameter (Parameter *outputParameter)
	Adds the given parameter as output parameter to this view node.

void	removeOutputParameter (Parameter *outputParameter)
	Removes the given parameter as output parameter from this view node.

void	requestRedraw ()
	Request a redraw of the current ogre scene.

Protected Attributes inherited from Frapper::ViewNode
unsigned int	m_stageIndex
	The index of the stage in which this node is contained.

bool	m_view
	Flag that states whether the result of this node should be displayed in the viewport.

Detailed Description

Class representing nodes that transform input data in 3D space.

Constructor & Destructor Documentation

TransformNode::TransformNode::TransformNode	(	const QString &	name,
		ParameterGroup *	parameterRoot
	)

Constructor of the TransformNode class.

Constructors and Destructors.

Parameters

name	The name for the new node.
parameterRoot	A copy of the parameter tree specific for the type of the node.

Constructor of the TransformNode class.

Parameters

name	The name for the new node.
parameterRoot	A copy of the parameter tree specific for the type of the node.

TransformNode::TransformNode::~TransformNode ( )

virtual

Destructor of the TransformNode class.

Defined virtual to guarantee that the destructor of a derived class will be called if the instance of the derived class is saved in a variable of its parent class type.

Member Function Documentation

Ogre::SceneNode * TransformNode::TransformNode::getSceneNode ( )

virtual

Returns the scene node that contains scene objects created or modified by this node.

Public Functions.

Returns: The scene node containing objects created or modified by this node.

Returns the scene node that contains scene objects created or modified by this node.

Returns: The scene node containing objects created or modified by this node.

Reimplemented from Frapper::ViewNode.

double TransformNode::TransformNode::getBoundingSphereRadius ( )

virtual

Returns the radius of the bounding sphere surrounding this object.

Returns: The radius of the bounding sphere surrounding this object.

void TransformNode::TransformNode::evaluateConnection ( Connection * connection )

virtual

Evaluates the given new connection for the node.

Parameters

connection The new connection to evaluate.

Reimplemented from Frapper::Node.

void TransformNode::TransformNode::processOutputGeometry ( )

slot

Processes the input geometry to generate the node's output geometry.

Private Slots.

void TransformNode::TransformNode::processOutputLights ( )

slot

Processes the input lights to generate the node's output lights.

void TransformNode::TransformNode::processOutputCameras ( )

slot

Processes the input cameras to generate the node's output cameras.

void TransformNode::TransformNode::applyTranslation ( )

slot

Applies the changed translation values to the scene nodes.

void TransformNode::TransformNode::applyRotation ( )

slot

Applies the changed rotation values to the scene nodes.

void TransformNode::TransformNode::applyScale ( )

slot

Applies the changed scale values to the scene nodes.

void TransformNode::TransformNode::resetTransformation ( )

slot

Resets the transformation parameters to their default values.

Member Data Documentation

const QString TransformNode::TransformNode::InputGeometryParameterName = "Geometry to Transform"

staticprotected

The name of the input geometry parameter.

Protected Static Constants.

const QString TransformNode::TransformNode::InputLightsParameterName = "Lights to Transform"

staticprotected

The name of the input lights parameter.

const QString TransformNode::TransformNode::InputCamerasParameterName = "Cameras to Transform"

staticprotected

The name of the input cameras parameter.

const QString TransformNode::TransformNode::OutputGeometryParameterName = "Transformed Geometry"

staticprotected

The name of the output geometry parameter.

const QString TransformNode::TransformNode::OutputLightsParameterName = "Transformed Lights"

staticprotected

The name of the output lights parameter.

const QString TransformNode::TransformNode::OutputCamerasParameterName = "Transformed Cameras"

staticprotected

The name of the output cameras parameter.

Ogre::SceneManager* TransformNode::TransformNode::m_sceneManager

private

The scene manager handling all OGRE objects.

Ogre::SceneNode* TransformNode::TransformNode::m_geometrySceneNode

private

The scene node to which input entities will be attached.

OgreContainer* TransformNode::TransformNode::m_geometryContainer

private

The container for the scene node.

Ogre::SceneNode* TransformNode::TransformNode::m_lightsSceneNode

private

The scene node to which input lights will be attached.

OgreContainer* TransformNode::TransformNode::m_lightsContainer

private

The container for the lights.

Ogre::SceneNode* TransformNode::TransformNode::m_cameraSceneNode

private

The scene node to which the input camera will be attached.

OgreContainer* TransformNode::TransformNode::m_cameraContainer

private

The container for the camera.

The documentation for this class was generated from the following files:

Public Slots

Public Member Functions

Static Protected Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
