Frapper::Node Class Reference

Abstract base class for all nodes. More...

#include <Node.h>

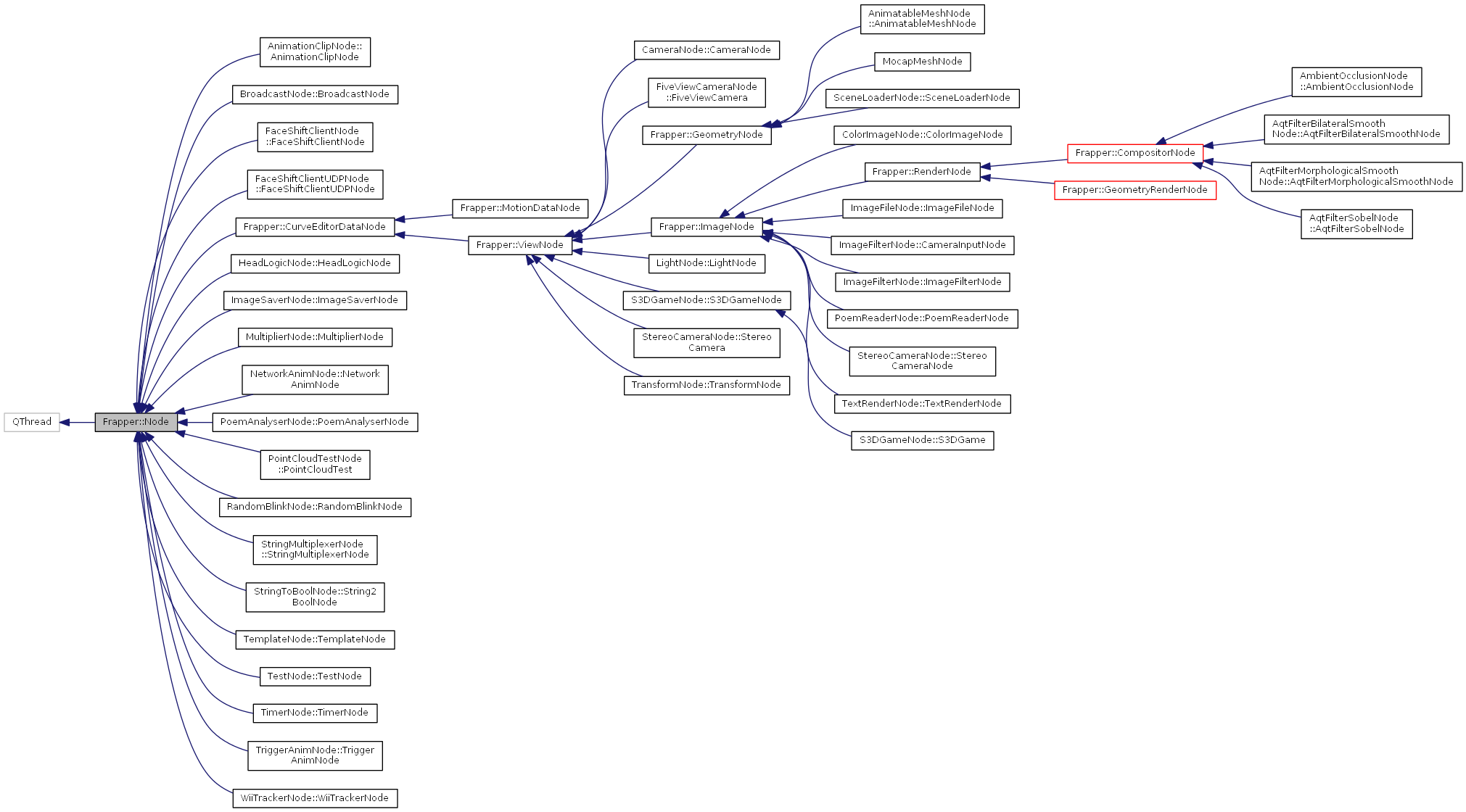

Inheritance diagram for Frapper::Node:

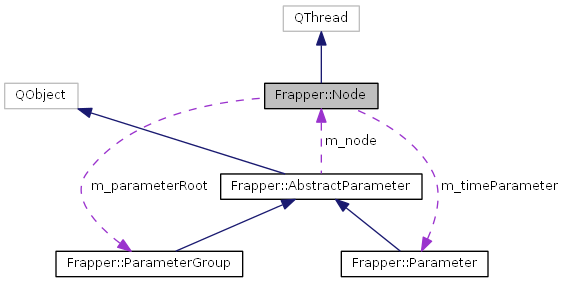

Collaboration diagram for Frapper::Node:

Public Slots
virtual void	setEvaluate (bool evaluate)
	Sets whether this node should be evaluated in the network.
virtual void	loadReady ()
	Executed when scene loading is ready.
virtual void	saveStart ()
	Executed when scene saving is ready.

Signals
void	frameChanged (int)
	Signal that is emitted when current frame has changed.
void	nodeChanged ()
	Signal that is emitted when something has changed in the node. (Parameters added/deleted)
void	nodeNameChanged (const QString &name)
	Signal that is emitted when the node's name has changed.
void	selectedChanged (bool selected)
	Signal that is emitted when the selected state of the node has changed.
void	sendDeleteConnection (Connection *connection)
	Signal that is emitted in order to delete a connection (through SceneModel)
void	updateFrame ()
	Update frame.
void	selectDeselectObject (const QString &name)
	Seim.
void	loadSceneElementsReady ()
	Signal that is emitted when the scene loading is ready.

Public Member Functions
	Node (const QString &name, ParameterGroup *parameterRoot)
	Constructor of the Node class.
virtual	~Node ()
	Destructor of the Node class.
virtual void	run (const QString &parameterName)
	Execute function for threading.
virtual bool	process (const QString &parameterName)
	Processes the node's input data to generate the data for the parameter with the given name.
bool	getTypeUnknown () const
Parameter *	getTimeParameter () const
	Returns the actual timeline intex.
QString	getName () const
	Returns the name of the node. The name must be unique in the node network so that each node object can be uniquely identified by its name.
void	setName (const QString &name)
	Sets the name of the node. The name must be unique in the node network so that each node object can be uniquely identified by its name.
QString	getTypeName () const
	Returns the name of the node's type.
void	setTypeName (const QString &typeName)
	Set the name of the node's type.
bool	isTypeUnknown () const
	Returns whether a plugin for the node's type is available.
void	setTypeUnknown (bool typeUnknown=true)
	Sets the flag that indicates whether a plugin for the node's type is available.
bool	isEvaluated () const
	Returns whether this node should be evaluated in the network.
bool	isSelected () const
	Returns whether this node is currently selected.
virtual void	setSelected (bool selected)
	Sets whether this node is currently selected.
bool	isSelfEvaluating () const
	Returns whether the node is self-evaluating.
bool	isSaveable () const
	Returns whether the node is saveable.
void	setSelfEvaluating (bool selfEvaluating)
	Sets whether the node is self-evaluating.
void	setSaveable (bool saveable)
	Sets whether the node is saveable.
QString	getSearchText () const
	Returns the search text currently set for the node.
void	setSearchText (const QString &searchText)
	Sets the text to use when filtering parameters of the node before creating editing widgets in a parameter editor panel.
ParameterGroup *	getParameterRoot () const
	Returns the root of the tree of parameters and parameter groups for the node.
ParameterGroup *	getParameterGroup (const QString &name) const
	Returns the parameter group with the given name.
void	fillParameterLists (AbstractParameter::List *inputParameters, AbstractParameter::List *outputParameters)
	Iterates over the children of the parameter root and fills the given lists with input and output parameters and parameter groups containing input and output parameters.
void	fillParameterLists (AbstractParameter::List *connectedInputParameters, AbstractParameter::List *connectedOutputParameters, bool *unconnectedInputParametersAvailable, bool *unconnectedOutputParametersAvailable)
	Iterates over the children of the parameter root and fills the given lists with connected input and output parameters and parameter groups containing connected input and output parameters.
AbstractParameter::List	getParameters (Parameter::PinType pinType, bool connected, ParameterGroup *parameterGroup=0)
	Returns a list of parameters contained in the given parameter group that are of the given pin type and that are connected or not.
bool	hasParameter (const QString &name) const
	Returns whether the node contains a parameter with the given name.
Parameter *	getParameter (const QString &name) const
	Returns the parameter with the given name.
NumberParameter *	getNumberParameter (const QString &name) const
	Returns the number parameter with the given name.
FilenameParameter *	getFilenameParameter (const QString &name) const
	Returns the filename parameter with the given name.
EnumerationParameter *	getEnumerationParameter (const QString &name) const
	Returns the enumeration parameter with the given name.
GeometryParameter *	getGeometryParameter (const QString &name) const
	Returns the geometry parameter with the given name.
LightParameter *	getLightParameter (const QString &name) const
	Returns the light parameter with the given name.
CameraParameter *	getCameraParameter (const QString &name) const
	Returns the camera parameter with the given name.
void	setDirty (const QString &name, bool dirty)
	Sets the dirty state of the parameter with the given name to the given state.
void	setDirty (bool dirty)
	Sets the dirty state of the node and all child parameters.
void	setNodeDirty (bool dirty)
	Sets the dirty state of the node.
bool	isNodeDirty ()
	Returns the dirty state of the node.
void	removeParameter (const QString &name, bool diveInGroups=true)
	Removes and deletes the parameter with the given name.
void	removeParameter (Parameter *parameter, bool diveInGroups=true)
	Removes and deletes the given parameter.
void	addAffection (const QString &parameterName, const QString &affectedParameterName)
	Adds a affection between two parameters.
QVariant	getValue (const QString &name, bool triggerEvaluation=false)
	Returns the value of the parameter with the given name while optionally triggering the evaluation chain.
bool	getBoolValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a boolean parameter while optionally triggering the evaluation chain.
int	getIntValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an integer parameter while optionally triggering the evaluation chain.
unsigned int	getUnsignedIntValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an unsigned integer parameter while optionally triggering the evaluation chain.
float	getFloatValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a 32bit-precision floating point parameter while optionally triggering the evaluation chain.
double	getDoubleValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a double-precision floating point parameter while optionally triggering the evaluation chain.
QString	getStringValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a string parameter while optionally triggering the evaluation chain.
QColor	getColorValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a color parameter while optionally triggering the evaluation chain.
Ogre::Vector3	getVectorValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an OGRE vector parameter while optionally triggering the evaluation chain.
Ogre::SceneNode *	getSceneNodeValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a scene node parameter while optionally triggering the evaluation chain.
Ogre::TexturePtr	getTextureValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an OGRE texture parameter while optionally triggering the evaluation chain.
ParameterGroup *	getGroupValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a parameter group parameter while optionally triggering the evaluation chain.
void	setValue (const QString &name, const QVariant &value, bool triggerDirtying=false)
	Sets the value of the parameter with the given name to the given value while optionally triggering the dirtying chain.
void	setValue (const QString &name, bool value, bool triggerDirtying=false)
	Convenience function for setting the value of a boolean parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, int value, bool triggerDirtying=false)
	Convenience function for setting the value of an integer parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, unsigned int value, bool triggerDirtying=false)
	Convenience function for setting the value of an unsigned integer parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, double value, bool triggerDirtying=false)
	Convenience function for setting the value of a double-precision floating point parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, char *value, bool triggerDirtying=false)
	Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, const char *value, bool triggerDirtying=false)
	Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, const QString &value, bool triggerDirtying=false)
	Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, const QColor &value, bool triggerDirtying=false)
	Convenience function for setting the value of a color parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, const Ogre::Vector3 &value, bool triggerDirtying=false)
	Convenience function for setting the value of an OGRE vector parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, Ogre::SceneNode *value, bool triggerDirtying=false)
	Convenience function for setting the value of a scene node parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, const Ogre::TexturePtr value, bool triggerDirtying=false)
	Convenience function for setting the value of an OGRE texture parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, ParameterGroup *value, bool triggerDirtying=false)
	Convenience function for setting the value of a parameter group parameter while optionally triggering the dirtying chain.
void	setParameterEnabled (const QString &name, bool enabled)
	Convenience function for setting the enabled flag of a string parameter.
void	setChangeFunction (const QString &name, const char *changeFunction)
	Sets the function to call when a parameter's value changes.
void	setProcessingFunction (const QString &name, const char *processingFunction)
	Sets the function to use for computing a parameter's value.
void	setAuxProcessingFunction (const QString &name, const char *processingFunction)
	Sets the auxiliary function to use for computing a parameter's value.
void	setCommandFunction (const QString &name, const char *commandFunction)
	Sets the function to use for executing the command represented by a parameter.
void	setOnConnectFunction (const QString &name, const char *onConnectFunction)
	Sets the function which should be called on parameter's connection.
void	setOnDisconnectFunction (const QString &name, const char *onDisconnectFunction)
	Sets the function which should be called on parameter's disconnection.
void	notifyChange ()
	Notify when something has changed in the node. (Parameters added/deleted)
virtual void	setUpTimeDependencies (Parameter *timeParameter)
	Sets up time dependencies for node parameters.
virtual void	evaluateConnection (Connection *connection)
	Evaluates the given new connection for the node.
void	deleteConnection (Connection *connection)
	Signal that is emitted in order to delete a connection (through SceneModel)
void	renderSingleFrame ()
	Render a single frame.

Static Public Attributes
static int	s_numberOfInstances
static int	s_totalNumberOfInstances

Protected Member Functions
Ogre::String	createUniqueName (const QString &objectName)
	Creates a unique name from the given object name by adding the Node number.
virtual void	finalize ()

Protected Attributes
QString	m_name
	The name of the node.
QString	m_typeName
	The type of the node.
bool	m_dirty
	The dirty bit.
Parameter *	m_timeParameter
	The global time parameter to use when addressing image sequences.
bool	m_typeUnknown
	Flag that states whether a plugin for the node's type is available.
bool	m_evaluate
	Flag that states whether this node should be evaluated in the network.
bool	m_selected
	Flag that states whether this node is currently selected.
bool	m_selfEvaluating
	Flag that states whether the node is self-evaluating.
QString	m_searchText
	The text to use for filtering parameters of this node before creating editing widgets in a parameter editor panel.
bool	m_saveable
	Flag that states whether the node is saveable.

Private Attributes
ParameterGroup *	m_parameterRoot
	The root of the tree of the node's parameters.

Detailed Description

Abstract base class for all nodes.

Inheritance Diagram

[legend]

Constructor & Destructor Documentation

Frapper::Node::Node	(	const QString &	name,
		ParameterGroup *	parameterRoot
	)

Constructor of the Node class.

Constructors and Destructors.

Parameters

name	The name for the new node.
parameterRoot	A copy of the parameter tree specific for the type of the node.

Constructor of the Node class.

Parameters

name	The name for the new node.
parameterRoot	A copy of the parameter tree specific for the type of the node.

Frapper::Node::~Node ( )

virtual

Destructor of the Node class.

Defined virtual to guarantee that the destructor of a derived class will be called if the instance of the derived class is saved in a variable of its parent class type.

Member Function Documentation

void Frapper::Node::run ( const QString &  parameterName )

virtual

Execute function for threading.

bool Frapper::Node::process ( const QString &  parameterName )

virtual

Processes the node's input data to generate the data for the parameter with the given name.

Public Functions.

Parameters

parameterName

The name of the parameter whose data should be generated.

Returns

True if generating the data succeeded, otherwise False.

Processes the node's input data to generate the data for the parameter with the given name.

Parameters

parameterName

The name of the parameter whose data should be generated.

Returns

True if generating the data succeeded, otherwise False.

bool Frapper::Node::getTypeUnknown

(

)

const

Parameter * Frapper::Node::getTimeParameter

(

)

const

Returns the actual timeline intex.

Returns the actual timeline parameter.

Returns

The actual timeline intex.

QString Frapper::Node::getName

(

)

const

Returns the name of the node. The name must be unique in the node network so that each node object can be uniquely identified by its name.

Returns

The name of the node.

void Frapper::Node::setName

(

const QString &

name

)

Sets the name of the node. The name must be unique in the node network so that each node object can be uniquely identified by its name.

Parameters

name	The new name for the node.

QString Frapper::Node::getTypeName

(

)

const

Returns the name of the node's type.

Returns

The name of the node's type.

void Frapper::Node::setTypeName

(

const QString &

typeName

)

Set the name of the node's type.

This function should normally only be called once directly after the node has been created by NodeFactory::createNode.

Parameters

typeName

The name of the node's type.

See Also

NodeFactory::createNode

This function should normally only be called once directly after the node has been created in the NodeFactory::createNode function.

Parameters

typeName

The name of the node's type.

See Also

NodeFactory::createNode

bool Frapper::Node::isTypeUnknown

(

)

const

Returns whether a plugin for the node's type is available.

Returns

True if a plugin for the node's type is available, otherwise False.

void Frapper::Node::setTypeUnknown

(

bool

typeUnknown = true

)

Sets the flag that indicates whether a plugin for the node's type is available.

Parameters

typeUnknown

Flag to indicate whether a plugin for the node's type is available.

bool Frapper::Node::isEvaluated

(

)

const

Returns whether this node should be evaluated in the network.

Returns

True if this node should be evaluated in the network, otherwise False.

bool Frapper::Node::isSelected

(

)

const

Returns whether this node is currently selected.

Returns

True if this node is currently selected, otherwise False.

void Frapper::Node::setSelected ( bool  selected )

virtual

Sets whether this node is currently selected.

Parameters

selected	The new selected value for the node.
The	new selected value for the node.

bool Frapper::Node::isSelfEvaluating

(

)

const

Returns whether the node is self-evaluating.

Returns

True if the node is self-evaluating, otherwise False.

True if the node is self-evaluating, otherwise false.

bool Frapper::Node::isSaveable

(

)

const

Returns whether the node is saveable.

Returns

True if the node is saveable, otherwise False.

True if the node is saveable, otherwise false.

void Frapper::Node::setSelfEvaluating

(

bool

selfEvaluating

)

Sets whether the node is self-evaluating.

Parameters

selfEvaluating

The new value for the self-evaluating flag.

void Frapper::Node::setSaveable

(

bool

saveable

)

Sets whether the node is saveable.

Parameters

saveable

The new value for the saveable flag.

QString Frapper::Node::getSearchText

(

)

const

Returns the search text currently set for the node.

Returns

The search text currently set for the node.

void Frapper::Node::setSearchText

(

const QString &

searchText

)

Sets the text to use when filtering parameters of the node before creating editing widgets in a parameter editor panel.

Parameters

searchText

The text to use for filtering parameters.

ParameterGroup * Frapper::Node::getParameterRoot

(

)

const

Returns the root of the tree of parameters and parameter groups for the node.

Public Parameter Group Functions.

Returns

The root of the tree of parameters for the node.

Returns the root of the tree of parameters and parameter groups for the node.

Returns

The root of the tree of parameters for the node.

ParameterGroup * Frapper::Node::getParameterGroup

(

const QString &

name

)

const

Returns the parameter group with the given name.

Parameters

name	The name of the parameter group to return.

Returns

The parameter group with the given name.

void Frapper::Node::fillParameterLists	(	AbstractParameter::List *	inputParameters,
		AbstractParameter::List *	outputParameters
	)

Iterates over the children of the parameter root and fills the given lists with input and output parameters and parameter groups containing input and output parameters.

Parameters

inputParameters	The list to fill with input parameters and parameter groups containing input parameters.
outputParameters	The list to fill with output parameters and parameter groups containing output parameters.

void Frapper::Node::fillParameterLists	(	AbstractParameter::List *	connectedInputParameters,
		AbstractParameter::List *	connectedOutputParameters,
		bool *	unconnectedInputParametersAvailable,
		bool *	unconnectedOutputParametersAvailable
	)

Iterates over the children of the parameter root and fills the given lists with connected input and output parameters and parameter groups containing connected input and output parameters.

Parameters

connectedInputParameters	The list to fill with connected input parameters and parameter groups containing connected input parameters.
connectedOutputParameters	The list to fill with connected output parameters and parameter groups containing connected output parameters.
unconnectedInputParametersAvailable	Flag that returns whether there are unconnected input parameters contained in the node.
unconnectedOutputParametersAvailable	Flag that returns whether there are unconnected output parameters contained in the node.

Parameter::List Frapper::Node::getParameters	(	Parameter::PinType	pinType,
		bool	connectedOnly,
		ParameterGroup *	parameterGroup = 0
	)

Returns a list of parameters contained in the given parameter group that are of the given pin type and that are connected or not.

Returns a list of parameters contained in the given parameter group that are of the given pin type. If the respective flag is set only connected parameters will be returned.

Parameters

pinType	Only parameters of this pin type will be returned.
connected	Flag to control whether to return connected or unconnected parameters.
parameterGroup	The root of the parameter tree to get parameters from.

Returns

A list of (connected) parameters of the given pin type contained in the given parameter group.

Parameters

pinType	Only parameters of this pin type will be returned.
connectedOnly	Flag that controls whether only connected parameters should be returned.
parameterGroup	The root of the parameter tree to get parameters from.

Returns

A list of (connected) parameters of the given pin type contained in the given parameter group.

bool Frapper::Node::hasParameter

(

const QString &

name

)

const

Returns whether the node contains a parameter with the given name.

Public Parameter Functions.

Parameters

name	The name of the parameter to check for existence.

Returns

True if a parameter with the given name exists in the node, otherwise False.

Returns whether the node contains a parameter with the given name.

Parameters

name	The name of the parameter to check for existence.

Returns

True if a parameter with the given name exists in the node, otherwise False.

Parameter * Frapper::Node::getParameter

(

const QString &

name

)

const

Returns the parameter with the given name.

Parameters

name	The name of the parameter to return.

Returns

The parameter with the given name.

NumberParameter * Frapper::Node::getNumberParameter

(

const QString &

name

)

const

Returns the number parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters

name	The name of the number parameter to return.

Returns

The number parameter with the given name.

FilenameParameter * Frapper::Node::getFilenameParameter

(

const QString &

name

)

const

Returns the filename parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters

name	The name of the filename parameter to return.

Returns

The filename parameter with the given name.

EnumerationParameter * Frapper::Node::getEnumerationParameter

(

const QString &

name

)

const

Returns the enumeration parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters

name	The name of the enumeration parameter to return.

Returns

The enumeration parameter with the given name.

GeometryParameter * Frapper::Node::getGeometryParameter

(

const QString &

name

)

const

Returns the geometry parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters

name	The name of the geometry parameter to return.

Returns

The geometry parameter with the given name.

LightParameter * Frapper::Node::getLightParameter

(

const QString &

name

)

const

Returns the light parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters

name	The name of the light parameter to return.

Returns

The light parameter with the given name.

CameraParameter * Frapper::Node::getCameraParameter

(

const QString &

name

)

const

Returns the camera parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters

name	The name of the camera parameter to return.

Returns

The camera parameter with the given name.

void Frapper::Node::setDirty	(	const QString &	name,
		bool	dirty
	)

Sets the dirty state of the parameter with the given name to the given state.

Parameters

name	The name of the parameter to set the dirty state for.
dirty	The new value for the parameter's dirty state.

void Frapper::Node::setDirty

(

bool

dirty

)

Sets the dirty state of the node and all child parameters.

Parameters

dirty

The new value for the node's dirty state.

void Frapper::Node::setNodeDirty

(

bool

dirty

)

Sets the dirty state of the node.

Parameters

dirty

The new value for the node's dirty state.

bool Frapper::Node::isNodeDirty

(

)

Returns the dirty state of the node.

Returns

The value for the node's dirty state.

void Frapper::Node::removeParameter	(	const QString &	name,
		bool	diveInGroups = true
	)

Removes and deletes the parameter with the given name.

Parameters

name	The name of the parameter to remove and delete.

void Frapper::Node::removeParameter	(	Parameter *	parameter,
		bool	diveInGroups = true
	)

Removes and deletes the given parameter.

Parameters

parameter

The parameter to remove and delete.

void Frapper::Node::addAffection	(	const QString &	parameterName,
		const QString &	affectedParameterName
	)

Adds a affection between two parameters.

QVariant Frapper::Node::getValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Returns the value of the parameter with the given name while optionally triggering the evaluation chain.

Public Value Getter Functions.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

Returns the value of the parameter with the given name while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

bool Frapper::Node::getBoolValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a boolean parameter while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

int Frapper::Node::getIntValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of an integer parameter while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

unsigned int Frapper::Node::getUnsignedIntValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of an unsigned integer parameter while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

float Frapper::Node::getFloatValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a 32bit-precision floating point parameter while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

double Frapper::Node::getDoubleValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a double-precision floating point parameter while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

QString Frapper::Node::getStringValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a string parameter while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

QColor Frapper::Node::getColorValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a color parameter while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

Ogre::Vector3 Frapper::Node::getVectorValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of an OGRE vector parameter while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

Ogre::SceneNode * Frapper::Node::getSceneNodeValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a scene node parameter while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

Ogre::TexturePtr Frapper::Node::getTextureValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of an OGRE texture parameter while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

ParameterGroup * Frapper::Node::getGroupValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a parameter group parameter while optionally triggering the evaluation chain.

Parameters

name	The name of the parameter whose value to return.
triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns

The value of the parameter with the given name.

void Frapper::Node::setValue	(	const QString &	name,
		const QVariant &	value,
		bool	triggerDirtying = false
	)

Sets the value of the parameter with the given name to the given value while optionally triggering the dirtying chain.

Public Value Setter Functions.

Parameters

name	The name of the parameter to set the value for.
value	The new value for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

Sets the value of the parameter with the given name to the given value while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The new value for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		bool	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a boolean parameter while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		int	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of an integer parameter while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		unsigned int	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of an unsigned integer parameter while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		double	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a double-precision floating point parameter while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		char *	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		const char *	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		const QString &	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.

If the parameter with the given name is not a string parameter the given value will be converted according to the parameter's type.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		const QColor &	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a color parameter while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		const Ogre::Vector3 &	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of an OGRE vector parameter while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		Ogre::SceneNode *	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a scene node parameter while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		const Ogre::TexturePtr	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of an OGRE texture parameter while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setValue	(	const QString &	name,
		ParameterGroup *	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a parameter group parameter while optionally triggering the dirtying chain.

Parameters

name	The name of the parameter to set the value for.
value	The value to set for the parameter with the given name.
triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Frapper::Node::setParameterEnabled	(	const QString &	name,
		bool	enabled
	)

Convenience function for setting the enabled flag of a string parameter.

Parameters

name	The name of the parameter to set the value for.
enabled	The enabled flag to set for the parameter with the given name.

void Frapper::Node::setChangeFunction	(	const QString &	name,
		const char *	changeFunction
	)

Sets the function to call when a parameter's value changes.

Public Callback Setter Functions.

Convenience function that calls setChangeFunction for the parameter with the given name.

Parameters

name	The name of the parameter to set the change function for.
changeFunction	The name of the function to call when the parameter's value changes.

Sets the function to call when a parameter's value changes.

Convenience function that calls setChangeFunction for the parameter with the given name.

Parameters

name	The name of the parameter to set the change function for.
changeFunction	The name of the function to call when the parameter's value changes.

void Frapper::Node::setProcessingFunction	(	const QString &	name,
		const char *	processingFunction
	)

Sets the function to use for computing a parameter's value.

Convenience function that calls setProcessingFunction for the parameter with the given name.

Parameters

name	The name of the parameter to set the processing function for.
processingFunction	The name of the function to use for computing the parameter's value.

void Frapper::Node::setAuxProcessingFunction	(	const QString &	name,
		const char *	processingFunction
	)

Sets the auxiliary function to use for computing a parameter's value.

Convenience function that calls setProcessingFunction for the parameter with the given name.

Parameters

name	The name of the parameter to set the processing function for.
processingFunction	The name of the function to use for computing the parameter's value.

void Frapper::Node::setCommandFunction	(	const QString &	name,
		const char *	commandFunction
	)

Sets the function to use for executing the command represented by a parameter.

Convenience function that calls setCommandFunction for the parameter with the given name.

Parameters

name	The name of the parameter to set the command function for.
commandFunction	The function to use for executing the command represented by the parameter.

void Frapper::Node::setOnConnectFunction	(	const QString &	name,
		const char *	onConnectFunction
	)

Sets the function which should be called on parameter's connection.

Parameters

onConnectFunction

The function called on parameter's connection.

void Frapper::Node::setOnDisconnectFunction	(	const QString &	name,
		const char *	onDisconnectFunction
	)

Sets the function which should be called on parameter's disconnection.

Parameters

onDisconnectFunction

The function called on parameter's connection.

void Frapper::Node::notifyChange

(

)

Notify when something has changed in the node. (Parameters added/deleted)

Public Misc Functions.

void Frapper::Node::setUpTimeDependencies ( Parameter *  timeParameter )

virtual

Sets up time dependencies for node parameters.

Can be implemented in derived classes to set up parameter affections from the given time parameter to specific parameters of the node that should be evaluated when the scene time represented by the given time parameter changes.

The default implementation does nothing.

Parameters

timeParameter

The parameter representing the current scene time.

Can be implemented in derived classes to set up parameter affections from the given time parameter to specific parameters of the node that should be evaluated when the scene time represented by the given time parameter changes.

The default implementation does nothing.

Parameters

timeParameter	The parameter representing the current scene time.
slot	The slot which should be triggered when frame has changed

Reimplemented in AnimationClipNode::AnimationClipNode.

void Frapper::Node::evaluateConnection ( Connection *  connection )

virtual

Evaluates the given new connection for the node.

The default implementation does nothing.

Parameters

connection	The new connection to evaluate.
connection	The new connection to evaluate.

Reimplemented in TransformNode::TransformNode.

void Frapper::Node::deleteConnection

(

Connection *

connection

)

Signal that is emitted in order to delete a connection (through SceneModel)

Parameters

name	The name of the object.

void Frapper::Node::renderSingleFrame

(

)

Render a single frame.

void Frapper::Node::setEvaluate ( bool  evaluate )

virtualslot

Sets whether this node should be evaluated in the network.

Public Slots.

Parameters

evaluate

The new value for eval flag of this node.

Sets whether this node should be evaluated in the network.

Parameters

evaluate

The new value for eval flag of this node.

void Frapper::Node::loadReady ( )

virtualslot

Executed when scene loading is ready.

Reimplemented in CameraNode::CameraNode.

void Frapper::Node::saveStart ( )

virtualslot

Executed when scene saving is ready.

Executed when scene loading is ready.

void Frapper::Node::frameChanged ( int  )

signal

Signal that is emitted when current frame has changed.

void Frapper::Node::nodeChanged ( )

signal

Signal that is emitted when something has changed in the node. (Parameters added/deleted)

void Frapper::Node::nodeNameChanged ( const QString &  name )

signal

Signal that is emitted when the node's name has changed.

void Frapper::Node::selectedChanged ( bool  selected )

signal

Signal that is emitted when the selected state of the node has changed.

Parameters

selected

The new selected state of the node.

void Frapper::Node::sendDeleteConnection ( Connection *  connection )

signal

Signal that is emitted in order to delete a connection (through SceneModel)

Parameters

connection

A pointer to the connecion.

void Frapper::Node::updateFrame ( )

signal

Update frame.

void Frapper::Node::selectDeselectObject ( const QString &  name )

signal

Seim.

void Frapper::Node::loadSceneElementsReady ( )

signal

Signal that is emitted when the scene loading is ready.

Ogre::String Frapper::Node::createUniqueName ( const QString &  objectName )

protected

Creates a unique name from the given object name by adding the Node number.

Protected Methods.

void Frapper::Node::finalize ( )

protectedvirtual

Member Data Documentation

int Frapper::Node::s_numberOfInstances

static

int Frapper::Node::s_totalNumberOfInstances

static

QString Frapper::Node::m_name

protected

The name of the node.

Must be unique in the node network so that each node can be uniquely identified by its name.

QString Frapper::Node::m_typeName

protected

The type of the node.

bool Frapper::Node::m_dirty

protected

The dirty bit.

Parameter* Frapper::Node::m_timeParameter

protected

The global time parameter to use when addressing image sequences.

bool Frapper::Node::m_typeUnknown

protected

Flag that states whether a plugin for the node's type is available.

bool Frapper::Node::m_evaluate

protected

Flag that states whether this node should be evaluated in the network.

bool Frapper::Node::m_selected

protected

Flag that states whether this node is currently selected.

bool Frapper::Node::m_selfEvaluating

protected

Flag that states whether the node is self-evaluating.

QString Frapper::Node::m_searchText

protected

The text to use for filtering parameters of this node before creating editing widgets in a parameter editor panel.

bool Frapper::Node::m_saveable

protected

Flag that states whether the node is saveable.

ParameterGroup* Frapper::Node::m_parameterRoot

private

The root of the tree of the node's parameters.

---

The documentation for this class was generated from the following files:

• Node.h
• Node.cpp
