Class representing connections between nodes (or rather between parameters of nodes). More...

#include <Connection.h>

Inheritance diagram for Frapper::Connection:

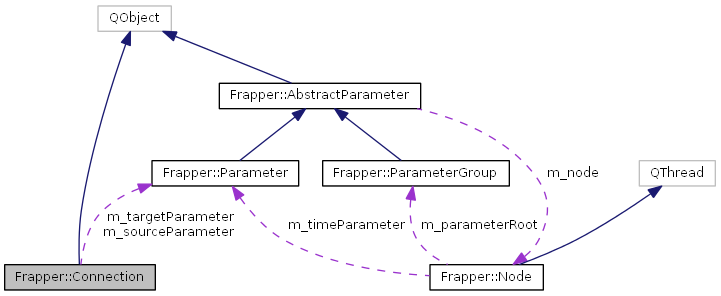

Collaboration diagram for Frapper::Connection:

[legend]

Public Types
typedef unsigned int	ID
	Type definition for a connection's identifier.

typedef QMap< ID, Connection * >	Map
	Type definition for a map of connections with connection ID's as keys.

Signals
void	destroyed (Connection *connection)
	Signal that is emitted when the connection is being destroyed.

Public Member Functions
	Connection (Parameter sourceParameter, Parameter targetParameter)
	Constructor of the Connection class.

	~Connection ()
	Destructor of the Connection class.

ID	getId () const
	Returns the connection's ID.

bool	hasSource () const
	Returns whether this connection is connected to an output parameter of a source node.

Parameter *	getSourceParameter () const
	Returns the source parameter that this connection is connected to.

void	setSourceParameter (Parameter *sourceParameter)
	Sets the source parameter that this connection should be connected to.

bool	hasTarget () const
	Returns whether this connection is connected to an input parameter of a target node.

Parameter *	getTargetParameter () const
	Returns the target parameter that this connection is connected to.

void	setTargetParameter (Parameter *targetParameter)
	Sets the target parameter that this connection should be connected to.

Private Member Functions
void	updateName ()
	Updates the name of the connection according to its source and target parameters.

Private Attributes
ID	m_id
	The ID of the connection.

Parameter *	m_sourceParameter
	The parameter of the source node that this connection is connected to.

Parameter *	m_targetParameter
	The parameter of the target node that this connection is connected to.

Static Private Attributes
static ID	s_currentId = 0
	The ID to give to the connection that is created next.

Detailed Description

Class representing connections between nodes (or rather between parameters of nodes).

Member Typedef Documentation

typedef unsigned int Frapper::Connection::ID

Type definition for a connection's identifier.

typedef QMap<ID, Connection *> Frapper::Connection::Map

Type definition for a map of connections with connection ID's as keys.

Constructor & Destructor Documentation

Frapper::Connection::Connection	(	Parameter *	sourceParameter,
		Parameter *	targetParameter
	)

Constructor of the Connection class.

Public Constructors.

Parameters

sourceParameter	The parameter of the source node that this connection is connected to.
targetParameter	The parameter of the target node that this connection is connected to.

Constructor of the Connection class.

Parameters

sourceParameter	The parameter of the source node that this connection is connected to.
targetParameter	The parameter of the target node that this connection is connected to.

Frapper::Connection::~Connection ( )

Destructor of the Connection class.

Member Function Documentation

Connection::ID Frapper::Connection::getId ( ) const

Returns the connection's ID.

Public Functions.

Returns: The connection's ID.

Returns the connection's ID.

Returns: The connection's ID.

bool Frapper::Connection::hasSource ( ) const

Returns whether this connection is connected to an output parameter of a source node.

Returns whether this connection is connected to an output parameter.

Returns: True if this connection is connected to an output parameter, otherwise False.

Parameter * Frapper::Connection::getSourceParameter ( ) const

Returns the source parameter that this connection is connected to.

Returns: The source parameter that this connection is connected to.

void Frapper::Connection::setSourceParameter ( Parameter * sourceParameter )

Sets the source parameter that this connection should be connected to.

Parameters

sourceParameter The source parameter that this connection should be connected to.

bool Frapper::Connection::hasTarget ( ) const

Returns whether this connection is connected to an input parameter of a target node.

Returns: True if this connection is connected to an input parameter, otherwise False.

Parameter * Frapper::Connection::getTargetParameter ( ) const

Returns the target parameter that this connection is connected to.

Returns: The target parameter that this connection is connected to.

void Frapper::Connection::setTargetParameter ( Parameter * targetParameter )

Sets the target parameter that this connection should be connected to.

Parameters

targetParameter The target parameter that this connection should be connected to.

void Frapper::Connection::destroyed ( Connection * connection )

signal

Signal that is emitted when the connection is being destroyed.

void Frapper::Connection::updateName ( )

private

Updates the name of the connection according to its source and target parameters.

Private Functions.

Member Data Documentation

Connection::ID Frapper::Connection::s_currentId = 0

staticprivate

The ID to give to the connection that is created next.

Private Static Data.

The ID to give to the Connection that is created next.

ID Frapper::Connection::m_id

private

The ID of the connection.

Parameter* Frapper::Connection::m_sourceParameter

private

The parameter of the source node that this connection is connected to.

Parameter* Frapper::Connection::m_targetParameter

private

The parameter of the target node that this connection is connected to.

The documentation for this class was generated from the following files:
