NodeType Class Reference

Class representing a specific type of nodes. More...

#include <NodeType.h>

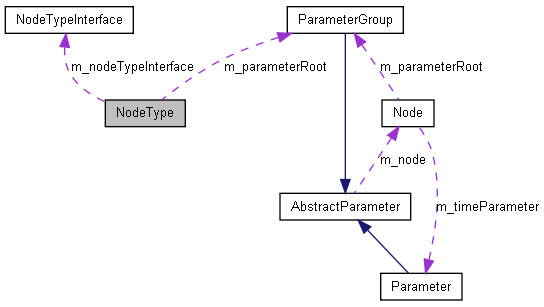

Collaboration diagram for NodeType:

[legend]

List of all members.

Public Types

typedef QMap< QString, NodeType * > Map

Type definition for a map with node type names as keys and pointers to node type objects as values.

typedef QPair< QString, QString > Category

Type definition of a node type category data structure containing a node type category name and node type category icon name.

typedef QList< Category > CategoryList

Type definition for a list of node type categories.

Public Member Functions

NodeType (const QString &filename)

Constructor of the NodeType class.

~NodeType ()

Destructor of the NodeType class.

QString getName () const

Returns the name of the node type.

QString getCategoryName () const

Returns the name of the category under which nodes of this type should be filed.

QColor getColor () const

Returns the color associated with this node type.

bool isAvailable () const

Returns whether nodes of this type can be created.

bool isInternal () const

Returns whether nodes of this type are reserved for internal use.

bool isErroneous () const

Returns whether errors or warnings occured while parsing the description file.

Node * createNode (const QString &name)

Creates a node of this type.

Static Public Attributes

static Category CategorySeparator = NodeType::Category(QString(), QString())

A special kind of node type category used for separating categories in menus.

Private Member Functions

bool parseDescriptionFile (const QString &filename)

Parses the XML description file with the given name and creates the list of parameters and connectors that nodes of this type hold.

ParameterGroup * parseParameters (QDomElement rootElement)

Parses the given DOM element and creates the tree of parameters that nodes of this type hold.

void parseAffections (QDomElement rootElement)

Parses the given DOM element and creates the list of forward and backward affections that nodes of this type hold.

Private Attributes

NodeTypeInterface * m_nodeTypeInterface

Pointer to a object which implements the NodeTypeInterface. For Node Plugins.

ParameterGroup * m_parameterRoot

The tree containing the parameters with default values for the node type.

QString m_name

The name of the node type.

QString m_categoryName

The name of the category under which nodes of this type should be filed.

QColor m_color

The color associated with the node type.

bool m_available

Flag that states whether this node type is available. Is set to false when parsing the XML description file failed.

bool m_internal

Flag that states whether nodes of this type are reserved for internal use.

bool m_erroneous

Flag that states whether errors or warnings occured while parsing the description file.

QMultiMap< QString, QString > m_affectionMap

Which input pin is affecting which output pins.

Static Private Attributes

static QMap< QString, unsigned
int > s_nodeIndex

The indices of nodes created of the different node types.

Detailed Description

Class representing a specific type of nodes.

Member Typedef Documentation

typedef QMap<QString, NodeType *> NodeType::Map

Type definition for a map with node type names as keys and pointers to node type objects as values.

typedef QPair<QString, QString> NodeType::Category

Type definition of a node type category data structure containing a node type category name and node type category icon name.

typedef QList<Category> NodeType::CategoryList

Type definition for a list of node type categories.

Constructor & Destructor Documentation

NodeType::NodeType ( const QString & filename )

Constructor of the NodeType class.

Constructors and Destructors.

Parameters:

filename

The name of an XML file describing the node type.

Constructor of the NodeType class.

Parameters:

filename

The name of an XML file describing the node type.

NodeType::~NodeType ( )

Destructor of the NodeType class.

Member Function Documentation

QString NodeType::getName ( ) const

Returns the name of the node type.

Public Functions.

Returns:: The name of the node type.

Returns the name of the node type.

Returns:: The name of the node type.

QString NodeType::getCategoryName ( ) const

Returns the name of the category under which nodes of this type should be filed.

Returns:: The name of the category under which nodes of this type should be filed.

QColor NodeType::getColor ( ) const

Returns the color associated with this node type.

Returns:: The color associated with this node type.

bool NodeType::isAvailable ( ) const

Returns whether nodes of this type can be created.

Returns:: True if nodes of this type can be created, otherwise False.

bool NodeType::isInternal ( ) const

Returns whether nodes of this type are reserved for internal use.

It should not be possible to create nodes of internal node types from the framework's user interface.

Returns:: True if nodes of this type are reserved for internal use, otherwise False.

bool NodeType::isErroneous ( ) const

Returns whether errors or warnings occured while parsing the description file.

Returns:: True if errors or warnings occured while parsing the description file, otherwise False.

Node * NodeType::createNode ( const QString & name )

Creates a node of this type.

Parameters:

name

The name for the new node.

Returns:: A pointer to a new node of this type.

bool NodeType::parseDescriptionFile ( const QString & filename ) [private]

Parses the XML description file with the given name and creates the list of parameters and connectors that nodes of this type hold.

Private Functions.

Parameters:

filename

The name of the XML description file to parse.

Parses the XML description file with the given name and creates the list of parameters and connectors that nodes of this type hold.

Parameters:

filename

The name of the XML description file to parse.

Returns:: True if parsing the file succeeded, otherwise False.

ParameterGroup * NodeType::parseParameters ( QDomElement rootElement ) [private]

Parses the given DOM element and creates the tree of parameters that nodes of this type hold.

Parameters:

rootElement The DOM element containing a list of <parameter> and <parameters> elements.

Returns:: A parameter group containing the created parameters.

Parameters:

rootElement

The DOM element containing a list of <parameter> and >parameters> elements.

Returns:: A parameter group containing the created parameters.

void NodeType::parseAffections ( QDomElement rootElement ) [private]

Parses the given DOM element and creates the list of forward and backward affections that nodes of this type hold.

Parameters:

	rootElement	The DOM element containing a list of `<connector>` elements.
	rootElement	The DOM element containing a list of <connector> elements.

Member Data Documentation

NodeType::Category NodeType::CategorySeparator = NodeType::Category(QString(), QString()) [static]

A special kind of node type category used for separating categories in menus.

Public Static Data.

QMap< QString, unsigned int > NodeType::s_nodeIndex [static, private]

The indices of nodes created of the different node types.

Private Static Data.

See also:: createNode

The index of nodes created of this node type.

See also:: createNode

NodeTypeInterface* NodeType::m_nodeTypeInterface [private]

Pointer to a object which implements the NodeTypeInterface. For Node Plugins.

ParameterGroup* NodeType::m_parameterRoot [private]

The tree containing the parameters with default values for the node type.

QString NodeType::m_name [private]

The name of the node type.

QString NodeType::m_categoryName [private]

The name of the category under which nodes of this type should be filed.

QColor NodeType::m_color [private]

The color associated with the node type.

bool NodeType::m_available [private]

Flag that states whether this node type is available. Is set to false when parsing the XML description file failed.

See also:: NodeType::NodeType
parseDescriptionFile

bool NodeType::m_internal [private]

Flag that states whether nodes of this type are reserved for internal use.

bool NodeType::m_erroneous [private]

Flag that states whether errors or warnings occured while parsing the description file.

QMultiMap<QString, QString> NodeType::m_affectionMap [private]

Which input pin is affecting which output pins.
