Node Class Reference

Abstract base class for all nodes. More...

#include <Node.h>

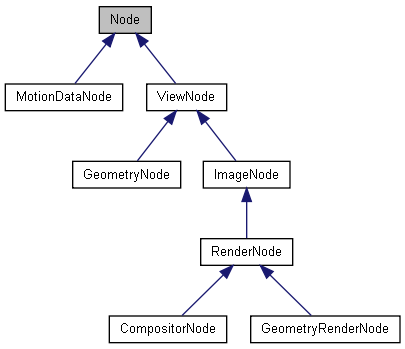

Inheritance diagram for Node:

[legend]

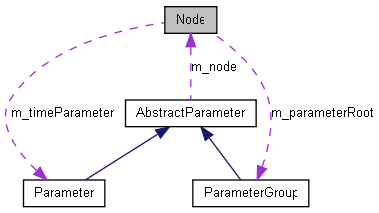

Collaboration diagram for Node:

[legend]

List of all members.

Public Slots
virtual void	setEvaluate (bool evaluate)
	Sets whether this node should be evaluated in the network.
Signals
void	frameChanged (int)
	Signal that is emitted when current frame has changed.
void	nodeChanged ()
	Signal that is emitted when something has changed in the node. (Parameters added/deleted).
void	nodeNameChanged (const QString &name)
	Signal that is emitted when the node's name has changed.
void	selectedChanged (bool selected)
	Signal that is emitted when the selected state of the node has changed.
void	deleteObject (const QString &name)
	Signal that is emitted in order to delete a certain object (through SceneModel).
void	selectDeselectObject (const QString &name)
	Seim.
Public Member Functions
	Node (const QString &name, ParameterGroup *parameterRoot)
	Constructor of the Node class.
virtual	~Node ()
	Destructor of the Node class.
virtual bool	process (const QString &parameterName)
	Processes the node's input data to generate the data for the parameter with the given name.
Parameter *	getTimeParameter () const
	Returns the actual timeline intex.
QString	getName () const
	Returns the name of the node. The name must be unique in the node network so that each node object can be uniquely identified by its name.
void	setName (const QString &name)
	Sets the name of the node. The name must be unique in the node network so that each node object can be uniquely identified by its name.
QString	getTypeName () const
	Returns the name of the node's type.
void	setTypeName (const QString &typeName)
	Set the name of the node's type.
bool	isTypeUnknown () const
	Returns whether a plugin for the node's type is available.
void	setTypeUnknown (bool typeUnknown=true)
	Sets the flag that indicates whether a plugin for the node's type is available.
bool	isEvaluated () const
	Returns whether this node should be evaluated in the network.
bool	isSelected () const
	Returns whether this node is currently selected.
virtual void	setSelected (bool selected)
	Sets whether this node is currently selected.
bool	isSelfEvaluating () const
	Returns whether the node is self-evaluating.
void	setSelfEvaluating (bool selfEvaluating)
	Sets whether the node is self-evaluating.
QString	getSearchText () const
	Returns the search text currently set for the node.
void	setSearchText (const QString &searchText)
	Sets the text to use when filtering parameters of the node before creating editing widgets in a parameter editor panel.
ParameterGroup *	getParameterRoot () const
	Returns the root of the tree of parameters and parameter groups for the node.
ParameterGroup *	getParameterGroup (const QString &name) const
	Returns the parameter group with the given name.
void	fillParameterLists (AbstractParameter::List *inputParameters, AbstractParameter::List *outputParameters)
	Iterates over the children of the parameter root and fills the given lists with input and output parameters and parameter groups containing input and output parameters.
void	fillParameterLists (AbstractParameter::List *connectedInputParameters, AbstractParameter::List *connectedOutputParameters, bool *unconnectedInputParametersAvailable, bool *unconnectedOutputParametersAvailable)
	Iterates over the children of the parameter root and fills the given lists with connected input and output parameters and parameter groups containing connected input and output parameters.
AbstractParameter::List	getParameters (Parameter::PinType pinType, bool connected, ParameterGroup *parameterGroup=0)
	Returns a list of parameters contained in the given parameter group that are of the given pin type and that are connected or not.
bool	hasParameter (const QString &name) const
	Returns whether the node contains a parameter with the given name.
Parameter *	getParameter (const QString &name) const
	Returns the parameter with the given name.
NumberParameter *	getNumberParameter (const QString &name) const
	Returns the number parameter with the given name.
FilenameParameter *	getFilenameParameter (const QString &name) const
	Returns the filename parameter with the given name.
EnumerationParameter *	getEnumerationParameter (const QString &name) const
	Returns the enumeration parameter with the given name.
GeometryParameter *	getGeometryParameter (const QString &name) const
	Returns the geometry parameter with the given name.
LightParameter *	getLightParameter (const QString &name) const
	Returns the light parameter with the given name.
CameraParameter *	getCameraParameter (const QString &name) const
	Returns the camera parameter with the given name.
void	setDirty (const QString &name, bool dirty)
	Sets the dirty state of the parameter with the given name to the given state.
void	setDirty (bool dirty)
	Sets the dirty state of the node.
bool	isDirty ()
	Returns the dirty state of the node.
void	removeParameter (const QString &name)
	Removes and deletes the parameter with the given name.
void	removeParameter (Parameter *parameter)
	Removes and deletes the given parameter.
void	addAffection (const QString &parameterName, const QString &affectedParameterName)
	Adds a affection between two parameters.
QVariant	getValue (const QString &name, bool triggerEvaluation=false)
	Returns the value of the parameter with the given name while optionally triggering the evaluation chain.
bool	getBoolValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a boolean parameter while optionally triggering the evaluation chain.
int	getIntValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an integer parameter while optionally triggering the evaluation chain.
unsigned int	getUnsignedIntValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an unsigned integer parameter while optionally triggering the evaluation chain.
double	getDoubleValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a double-precision floating point parameter while optionally triggering the evaluation chain.
QString	getStringValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a string parameter while optionally triggering the evaluation chain.
QColor	getColorValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a color parameter while optionally triggering the evaluation chain.
Ogre::Vector3	getVectorValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an OGRE vector parameter while optionally triggering the evaluation chain.
Ogre::SceneNode *	getSceneNodeValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a scene node parameter while optionally triggering the evaluation chain.
Ogre::TexturePtr	getTextureValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of an OGRE texture parameter while optionally triggering the evaluation chain.
ParameterGroup *	getGroupValue (const QString &name, bool triggerEvaluation=false)
	Convenience function for getting the value of a parameter group parameter while optionally triggering the evaluation chain.
void	setValue (const QString &name, const QVariant &value, bool triggerDirtying=false)
	Sets the value of the parameter with the given name to the given value while optionally triggering the dirtying chain.
void	setValue (const QString &name, bool value, bool triggerDirtying=false)
	Convenience function for setting the value of a boolean parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, int value, bool triggerDirtying=false)
	Convenience function for setting the value of an integer parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, unsigned int value, bool triggerDirtying=false)
	Convenience function for setting the value of an unsigned integer parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, double value, bool triggerDirtying=false)
	Convenience function for setting the value of a double-precision floating point parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, char *value, bool triggerDirtying=false)
	Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, const char *value, bool triggerDirtying=false)
	Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, const QString &value, bool triggerDirtying=false)
	Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, const QColor &value, bool triggerDirtying=false)
	Convenience function for setting the value of a color parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, const Ogre::Vector3 &value, bool triggerDirtying=false)
	Convenience function for setting the value of an OGRE vector parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, Ogre::SceneNode *value, bool triggerDirtying=false)
	Convenience function for setting the value of a scene node parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, const Ogre::TexturePtr value, bool triggerDirtying=false)
	Convenience function for setting the value of an OGRE texture parameter while optionally triggering the dirtying chain.
void	setValue (const QString &name, ParameterGroup *value, bool triggerDirtying=false)
	Convenience function for setting the value of a parameter group parameter while optionally triggering the dirtying chain.
void	setChangeFunction (const QString &name, const char *changeFunction)
	Sets the function to call when a parameter's value changes.
void	setProcessingFunction (const QString &name, const char *processingFunction)
	Sets the function to use for computing a parameter's value.
void	setCommandFunction (const QString &name, const char *commandFunction)
	Sets the function to use for executing the command represented by a parameter.
void	notifyChange ()
	Notify when something has changed in the node. (Parameters added/deleted).
virtual void	setUpTimeDependencies (Parameter *timeParameter)
	Sets up time dependencies for node parameters.
virtual void	evaluateConnection (Connection *connection)
	Evaluates the given new connection for the node.
virtual void	prepareDelete ()
Static Public Attributes
static int	s_numberOfInstances
static int	s_totalNumberOfInstances
Protected Member Functions
Ogre::String	createUniqueName (const QString &objectName)
	Creates a unique name from the given object name by adding the Node number.
virtual void	finalize ()
Protected Attributes
QString	m_name
	The name of the node.
QString	m_typeName
	The type of the node.
bool	m_dirty
	The dirty bit.
Parameter *	m_timeParameter
	The global time parameter to use when addressing image sequences.
bool	m_typeUnknown
	Flag that states whether a plugin for the node's type is available.
bool	m_evaluate
	Flag that states whether this node should be evaluated in the network.
bool	m_selected
	Flag that states whether this node is currently selected.
bool	m_selfEvaluating
	Flag that states whether the node is self-evaluating.
QString	m_searchText
	The text to use for filtering parameters of this node before creating editing widgets in a parameter editor panel.
Private Attributes
ParameterGroup *	m_parameterRoot
	The root of the tree of the node's parameters.

---

Detailed Description

Abstract base class for all nodes.

Inheritance Diagram

[legend]

---

Constructor & Destructor Documentation

Node::Node	(	const QString &	name,
		ParameterGroup *	parameterRoot
	)

Constructor of the Node class.

Constructors and Destructors.

Parameters:

	name	The name for the new node.
	parameterRoot	A copy of the parameter tree specific for the type of the node.

Constructor of the Node class.

Parameters:

	name	The name for the new node.
	parameterRoot	A copy of the parameter tree specific for the type of the node.

Node::~Node

(

)

[virtual]

Destructor of the Node class.

Defined virtual to guarantee that the destructor of a derived class will be called if the instance of the derived class is saved in a variable of its parent class type.

---

Member Function Documentation

bool Node::process

(

const QString &

parameterName

)

[virtual]

Processes the node's input data to generate the data for the parameter with the given name.

Public Functions.

Parameters:

parameterName

The name of the parameter whose data should be generated.

Returns:

True if generating the data succeeded, otherwise False.

Processes the node's input data to generate the data for the parameter with the given name.

Parameters:

parameterName

The name of the parameter whose data should be generated.

Returns:

True if generating the data succeeded, otherwise False.

Parameter * Node::getTimeParameter

(

)

const

Returns the actual timeline intex.

Returns the actual timeline parameter.

Returns:

The actual timeline intex.

QString Node::getName

(

)

const

Returns the name of the node. The name must be unique in the node network so that each node object can be uniquely identified by its name.

Returns:

The name of the node.

void Node::setName

(

const QString &

name

)

Sets the name of the node. The name must be unique in the node network so that each node object can be uniquely identified by its name.

Parameters:

name

The new name for the node.

QString Node::getTypeName

(

)

const

Returns the name of the node's type.

Returns:

The name of the node's type.

void Node::setTypeName

(

const QString &

typeName

)

Set the name of the node's type.

This function should normally only be called once directly after the node has been created by NodeFactory::createNode.

Parameters:

typeName

The name of the node's type.

See also:

NodeFactory::createNode

This function should normally only be called once directly after the node has been created in the NodeFactory::createNode function.

Parameters:

typeName

The name of the node's type.

See also:

NodeFactory::createNode

bool Node::isTypeUnknown

(

)

const

Returns whether a plugin for the node's type is available.

Returns:

True if a plugin for the node's type is available, otherwise False.

void Node::setTypeUnknown

(

bool

typeUnknown = true

)

Sets the flag that indicates whether a plugin for the node's type is available.

Parameters:

typeUnknown

Flag to indicate whether a plugin for the node's type is available.

bool Node::isEvaluated

(

)

const

Returns whether this node should be evaluated in the network.

Returns:

True if this node should be evaluated in the network, otherwise False.

bool Node::isSelected

(

)

const

Returns whether this node is currently selected.

Returns:

True if this node is currently selected, otherwise False.

void Node::setSelected

(

bool

selected

)

[virtual]

Sets whether this node is currently selected.

Parameters:

	selected	The new selected value for the node.
	The	new selected value for the node.

bool Node::isSelfEvaluating

(

)

const

Returns whether the node is self-evaluating.

Returns:

True if the node is self-evaluating, otherwise False.

void Node::setSelfEvaluating

(

bool

selfEvaluating

)

Sets whether the node is self-evaluating.

Parameters:

selfEvaluating

The new value for the self-evaluating flag.

QString Node::getSearchText

(

)

const

Returns the search text currently set for the node.

Returns:

The search text currently set for the node.

void Node::setSearchText

(

const QString &

searchText

)

Sets the text to use when filtering parameters of the node before creating editing widgets in a parameter editor panel.

Parameters:

searchText

The text to use for filtering parameters.

ParameterGroup * Node::getParameterRoot

(

)

const

Returns the root of the tree of parameters and parameter groups for the node.

Public Parameter Group Functions.

Returns:

The root of the tree of parameters for the node.

Returns the root of the tree of parameters and parameter groups for the node.

Returns:

The root of the tree of parameters for the node.

ParameterGroup * Node::getParameterGroup

(

const QString &

name

)

const

Returns the parameter group with the given name.

Parameters:

name

The name of the parameter group to return.

Returns:

The parameter group with the given name.

void Node::fillParameterLists	(	AbstractParameter::List *	inputParameters,
		AbstractParameter::List *	outputParameters
	)

Iterates over the children of the parameter root and fills the given lists with input and output parameters and parameter groups containing input and output parameters.

Parameters:

	inputParameters	The list to fill with input parameters and parameter groups containing input parameters.
	outputParameters	The list to fill with output parameters and parameter groups containing output parameters.

void Node::fillParameterLists	(	AbstractParameter::List *	connectedInputParameters,
		AbstractParameter::List *	connectedOutputParameters,
		bool *	unconnectedInputParametersAvailable,
		bool *	unconnectedOutputParametersAvailable
	)

Iterates over the children of the parameter root and fills the given lists with connected input and output parameters and parameter groups containing connected input and output parameters.

Parameters:

	connectedInputParameters	The list to fill with connected input parameters and parameter groups containing connected input parameters.
	connectedOutputParameters	The list to fill with connected output parameters and parameter groups containing connected output parameters.
	unconnectedInputParametersAvailable	Flag that returns whether there are unconnected input parameters contained in the node.
	unconnectedOutputParametersAvailable	Flag that returns whether there are unconnected output parameters contained in the node.

Parameter::List Node::getParameters	(	Parameter::PinType	pinType,
		bool	connectedOnly,
		ParameterGroup *	parameterGroup = 0
	)

Returns a list of parameters contained in the given parameter group that are of the given pin type and that are connected or not.

Returns a list of parameters contained in the given parameter group that are of the given pin type. If the respective flag is set only connected parameters will be returned.

Parameters:

	pinType	Only parameters of this pin type will be returned.
	connected	Flag to control whether to return connected or unconnected parameters.
	parameterGroup	The root of the parameter tree to get parameters from.

Returns:

A list of (connected) parameters of the given pin type contained in the given parameter group.

Parameters:

	pinType	Only parameters of this pin type will be returned.
	connectedOnly	Flag that controls whether only connected parameters should be returned.
	parameterGroup	The root of the parameter tree to get parameters from.

Returns:

A list of (connected) parameters of the given pin type contained in the given parameter group.

bool Node::hasParameter

(

const QString &

name

)

const

Returns whether the node contains a parameter with the given name.

Public Parameter Functions.

Parameters:

name

The name of the parameter to check for existence.

Returns:

True if a parameter with the given name exists in the node, otherwise False.

Returns whether the node contains a parameter with the given name.

Parameters:

name

The name of the parameter to check for existence.

Returns:

True if a parameter with the given name exists in the node, otherwise False.

Parameter * Node::getParameter

(

const QString &

name

)

const

Returns the parameter with the given name.

Parameters:

name

The name of the parameter to return.

Returns:

The parameter with the given name.

NumberParameter * Node::getNumberParameter

(

const QString &

name

)

const

Returns the number parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters:

name

The name of the number parameter to return.

Returns:

The number parameter with the given name.

FilenameParameter * Node::getFilenameParameter

(

const QString &

name

)

const

Returns the filename parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters:

name

The name of the filename parameter to return.

Returns:

The filename parameter with the given name.

EnumerationParameter * Node::getEnumerationParameter

(

const QString &

name

)

const

Returns the enumeration parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters:

name

The name of the enumeration parameter to return.

Returns:

The enumeration parameter with the given name.

GeometryParameter * Node::getGeometryParameter

(

const QString &

name

)

const

Returns the geometry parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters:

name

The name of the geometry parameter to return.

Returns:

The geometry parameter with the given name.

LightParameter * Node::getLightParameter

(

const QString &

name

)

const

Returns the light parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters:

name

The name of the light parameter to return.

Returns:

The light parameter with the given name.

CameraParameter * Node::getCameraParameter

(

const QString &

name

)

const

Returns the camera parameter with the given name.

Convenience function that uses getParameter and performs type casting.

Parameters:

name

The name of the camera parameter to return.

Returns:

The camera parameter with the given name.

void Node::setDirty	(	const QString &	name,
		bool	dirty
	)

Sets the dirty state of the parameter with the given name to the given state.

Parameters:

	name	The name of the parameter to set the dirty state for.
	dirty	The new value for the parameter's dirty state.

void Node::setDirty

(

bool

dirty

)

Sets the dirty state of the node.

Parameters:

dirty

The new value for the ´node's dirty state.

bool Node::isDirty

(

)

Returns the dirty state of the node.

Returns:

The value for the node's dirty state.

void Node::removeParameter

(

const QString &

name

)

Removes and deletes the parameter with the given name.

Parameters:

name

The name of the parameter to remove and delete.

void Node::removeParameter

(

Parameter *

parameter

)

Removes and deletes the given parameter.

Parameters:

parameter

The parameter to remove and delete.

void Node::addAffection	(	const QString &	parameterName,
		const QString &	affectedParameterName
	)

Adds a affection between two parameters.

QVariant Node::getValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Returns the value of the parameter with the given name while optionally triggering the evaluation chain.

Public Value Getter Functions.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

Returns the value of the parameter with the given name while optionally triggering the evaluation chain.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

bool Node::getBoolValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a boolean parameter while optionally triggering the evaluation chain.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

int Node::getIntValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of an integer parameter while optionally triggering the evaluation chain.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

unsigned int Node::getUnsignedIntValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of an unsigned integer parameter while optionally triggering the evaluation chain.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

double Node::getDoubleValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a double-precision floating point parameter while optionally triggering the evaluation chain.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

QString Node::getStringValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a string parameter while optionally triggering the evaluation chain.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

QColor Node::getColorValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a color parameter while optionally triggering the evaluation chain.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

Ogre::Vector3 Node::getVectorValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of an OGRE vector parameter while optionally triggering the evaluation chain.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

Ogre::SceneNode * Node::getSceneNodeValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a scene node parameter while optionally triggering the evaluation chain.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

Ogre::TexturePtr Node::getTextureValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of an OGRE texture parameter while optionally triggering the evaluation chain.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

ParameterGroup * Node::getGroupValue	(	const QString &	name,
		bool	triggerEvaluation = false
	)

Convenience function for getting the value of a parameter group parameter while optionally triggering the evaluation chain.

Parameters:

	name	The name of the parameter whose value to return.
	triggerEvaluation	Flag to control whether to trigger the evaluation chain.

Returns:

The value of the parameter with the given name.

void Node::setValue	(	const QString &	name,
		const QVariant &	value,
		bool	triggerDirtying = false
	)

Sets the value of the parameter with the given name to the given value while optionally triggering the dirtying chain.

Public Value Setter Functions.

Parameters:

	name	The name of the parameter to set the value for.
	value	The new value for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

Sets the value of the parameter with the given name to the given value while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The new value for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		bool	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a boolean parameter while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		int	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of an integer parameter while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		unsigned int	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of an unsigned integer parameter while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		double	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a double-precision floating point parameter while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		char *	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		const char *	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		const QString &	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a string parameter while optionally triggering the dirtying chain.

If the parameter with the given name is not a string parameter the given value will be converted according to the parameter's type.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		const QColor &	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a color parameter while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		const Ogre::Vector3 &	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of an OGRE vector parameter while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		Ogre::SceneNode *	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a scene node parameter while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		const Ogre::TexturePtr	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of an OGRE texture parameter while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setValue	(	const QString &	name,
		ParameterGroup *	value,
		bool	triggerDirtying = false
	)

Convenience function for setting the value of a parameter group parameter while optionally triggering the dirtying chain.

Parameters:

	name	The name of the parameter to set the value for.
	value	The value to set for the parameter with the given name.
	triggerDirtying	Flag to control whether to trigger the dirtying chain.

void Node::setChangeFunction	(	const QString &	name,
		const char *	changeFunction
	)

Sets the function to call when a parameter's value changes.

Public Callback Setter Functions.

Convenience function that calls setChangeFunction for the parameter with the given name.

Parameters:

	name	The name of the parameter to set the change function for.
	changeFunction	The name of the function to call when the parameter's value changes.

Sets the function to call when a parameter's value changes.

Convenience function that calls setChangeFunction for the parameter with the given name.

Parameters:

	name	The name of the parameter to set the change function for.
	changeFunction	The name of the function to call when the parameter's value changes.

void Node::setProcessingFunction	(	const QString &	name,
		const char *	processingFunction
	)

Sets the function to use for computing a parameter's value.

Convenience function that calls setProcessingFunction for the parameter with the given name.

Parameters:

	name	The name of the parameter to set the processing function for.
	processingFunction	The name of the function to use for computing the parameter's value.

void Node::setCommandFunction	(	const QString &	name,
		const char *	commandFunction
	)

Sets the function to use for executing the command represented by a parameter.

Convenience function that calls setCommandFunction for the parameter with the given name.

Parameters:

	name	The name of the parameter to set the command function for.
	commandFunction	The function to use for executing the command represented by the parameter.

void Node::notifyChange

(

)

Notify when something has changed in the node. (Parameters added/deleted).

Public Misc Functions.

Notify when something has changed in the node. (Parameters added/deleted)

void Node::setUpTimeDependencies

(

Parameter *

timeParameter

)

[virtual]

Sets up time dependencies for node parameters.

Can be implemented in derived classes to set up parameter affections from the given time parameter to specific parameters of the node that should be evaluated when the scene time represented by the given time parameter changes.

The default implementation does nothing.

Parameters:

timeParameter

The parameter representing the current scene time.

Can be implemented in derived classes to set up parameter affections from the given time parameter to specific parameters of the node that should be evaluated when the scene time represented by the given time parameter changes.

The default implementation does nothing.

Parameters:

	timeParameter	The parameter representing the current scene time.
	slot	The slot which should be triggered when frame has changed

void Node::evaluateConnection

(

Connection *

connection

)

[virtual]

Evaluates the given new connection for the node.

The default implementation does nothing.

Parameters:

	connection	The new connection to evaluate.
	connection	The new connection to evaluate.

void Node::setEvaluate

(

bool

evaluate

)

[virtual, slot]

Sets whether this node should be evaluated in the network.

Public Slots.

Parameters:

evaluate

The new value for eval flag of this node.

Sets whether this node should be evaluated in the network.

Parameters:

evaluate

The new value for eval flag of this node.

Reimplemented in ViewNode.

void Node::frameChanged

(

int

)

[signal]

Signal that is emitted when current frame has changed.

void Node::nodeChanged

(

)

[signal]

Signal that is emitted when something has changed in the node. (Parameters added/deleted).

void Node::nodeNameChanged

(

const QString &

name

)

[signal]

Signal that is emitted when the node's name has changed.

void Node::selectedChanged

(

bool

selected

)

[signal]

Signal that is emitted when the selected state of the node has changed.

Parameters:

selected

The new selected state of the node.

void Node::deleteObject

(

const QString &

name

)

[signal]

Signal that is emitted in order to delete a certain object (through SceneModel).

Parameters:

name

The name of the object.

void Node::selectDeselectObject

(

const QString &

name

)

[signal]

Seim.

Ogre::String Node::createUniqueName

(

const QString &

objectName

)

[protected]

Creates a unique name from the given object name by adding the Node number.

Protected Methods.

void Node::finalize

(

)

[protected, virtual]

void Node::prepareDelete

(

)

[virtual]

---

Member Data Documentation

int Node::s_numberOfInstances [static]

int Node::s_totalNumberOfInstances [static]

QString Node::m_name [protected]

The name of the node.

Must be unique in the node network so that each node can be uniquely identified by its name.

QString Node::m_typeName [protected]

The type of the node.

bool Node::m_dirty [protected]

The dirty bit.

Parameter* Node::m_timeParameter [protected]

The global time parameter to use when addressing image sequences.

bool Node::m_typeUnknown [protected]

Flag that states whether a plugin for the node's type is available.

bool Node::m_evaluate [protected]

Flag that states whether this node should be evaluated in the network.

bool Node::m_selected [protected]

Flag that states whether this node is currently selected.

bool Node::m_selfEvaluating [protected]

Flag that states whether the node is self-evaluating.

QString Node::m_searchText [protected]

The text to use for filtering parameters of this node before creating editing widgets in a parameter editor panel.

ParameterGroup* Node::m_parameterRoot [private]

The root of the tree of the node's parameters.

---

The documentation for this class was generated from the following files:

• Node.h
• Node.cpp
