Frapper::TestPanel Class Reference

Class representing a view for displaying and editing parameters of nodes. More...

#include <TestPanel.h>

Inheritance diagram for Frapper::TestPanel:

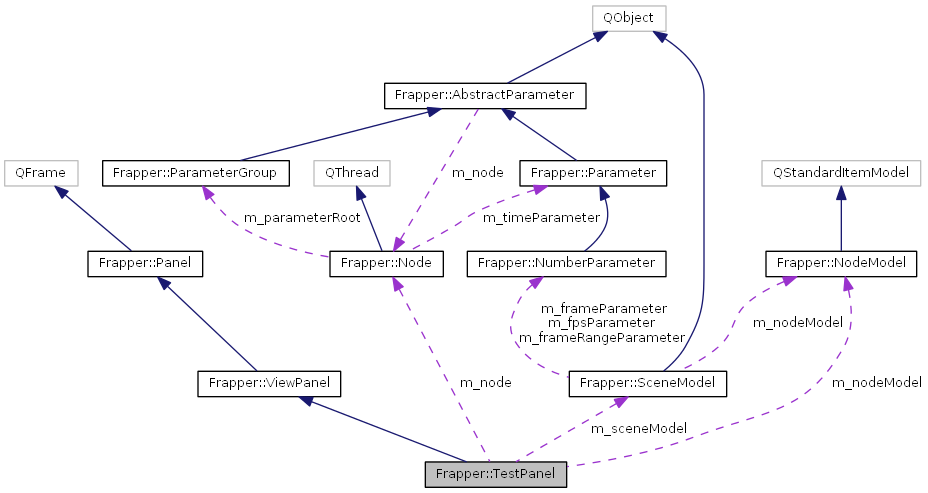

Collaboration diagram for Frapper::TestPanel:

Public Member Functions
	TestPanel (QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the TestPanel class.
virtual	~TestPanel ()
	Destructor of the TestPanel class.
virtual void	registerControl (NodeModel *nodeModel, SceneModel *sceneModel)
	Connects the panel with the scene.
QListWidgetItem *	addItem (Parameter *parameter, bool groupElement)
	Adds a item to the list.
void	fillToolBars (QToolBar *mainToolBar, QToolBar *panelToolBar)
	Fills the given tool bars with actions for the TestPanel view.
Public Member Functions inherited from Frapper::ViewPanel
	ViewPanel (Type viewPanelType, QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the ViewPanel class.
Type	getViewPanelType ()
	Returns the type of the view panel.
Public Member Functions inherited from Frapper::Panel
	Panel (QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the Panel class.
virtual	~Panel ()
	Destructor of the Panel class.
QMap< QString, QString >	getPanelParameters ()
	Gets the panel parameters. For load and save functionality.
virtual void	setPanelParameters (const QMap< QString, QString > &parameterMap)
	Sets the panel parameters. For load and save functionality.

Private Slots
void	updateSelectedNode (Node *selectedNode)
	Is called a node is selected.
void	update ()
	Updates the panel if the node model changes.
void	nodeSelected (QListWidgetItem *listItem)
	Updates the scene and the panel if a node is selected in the panel.
void	showDiscription (bool description)
	Sets the description mode.

Private Attributes
NodeModel *	m_nodeModel
	Node model.
Node *	m_node
	selected node
SceneModel *	m_sceneModel
	Scene model.
QListWidget *	m_ListNodes
	List Widget to show all nodes in the scene.
QListWidget *	m_InputParameters
	List Widget to show all input parameters of the selected node.
QListWidget *	m_OutputParameters
	List Widget to show all output parameters of the selected node.
QListWidget *	m_NodeParameters
	List Widget to show all non-pin parameters of the selected node.
bool	m_description
	Bool if detailed description should be used.

Additional Inherited Members
Public Types inherited from Frapper::ViewPanel
enum	Type {   T_Documentation, T_Viewport, T_NetworkEditor, T_HierarchyEditor,   T_ParameterEditor, T_CurveEditor, T_Timeline, T_PluginPanel,   T_PainterPanel, T_NumTypes }
	Nested enumeration for the different types of view panels. More...
Static Public Member Functions inherited from Frapper::Panel
static QString	getTypeName (Type panelType)
	Returns the name of the given panel type.
static QString	getTypeIconName (Type panelType)
	Returns the icon name for the given panel type.
Protected Attributes inherited from Frapper::Panel
QMap< QString, QString >	m_parameterMap
	Map with default values. For load and save functionality.

Detailed Description

Class representing a view for displaying and editing parameters of nodes.

Constructor & Destructor Documentation

TestPanel::TestPanel	(	QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0
	)

Constructor of the TestPanel class.

Constructors and Destructors.

Parameters

parent	The parent widget the created instance will be a child of.
flags	Extra widget options.

Constructor of the TestPanel class.

Parameters

parent	The parent widget the created instance will be a child of.
flags	Extra widget options.

TestPanel::~TestPanel ( )

virtual

Destructor of the TestPanel class.

Destructor of the NetworkPanel class.

Defined virtual to guarantee that the destructor of a derived class will be called if the instance of the derived class is saved in a variable of its parent class type.

Member Function Documentation

void TestPanel::registerControl ( NodeModel *  nodeModel, SceneModel *  sceneModel  )

virtual

Connects the panel with the scene.

Public Funcitons.

Parameters

*nodeModel	NodeModel of the scene
*sceneModel	SceneModel of the scene

Connects the panel with the scene.

Parameters

*nodeModel	NodeModel of the scene
*sceneModel	SceneModel of the scene

Reimplemented from Frapper::Panel.

QListWidgetItem * TestPanel::addItem	(	Parameter *	parameter,
		bool	groupElement
	)

Adds a item to the list.

Parameters

parameter	Parameter to be added to a list
groupElement	true if element of a parameter group

Returns

the created QListWidgetItem

void TestPanel::fillToolBars ( QToolBar *  mainToolBar, QToolBar *  panelToolBar  )

virtual

Fills the given tool bars with actions for the TestPanel view.

Parameters

mainToolBar	The main tool bar to fill with actions.
panelToolBar	The panel tool bar to fill with actions.

Reimplemented from Frapper::Panel.

void TestPanel::updateSelectedNode ( Node *  selectedNode )

privateslot

Is called a node is selected.

Private Slots.

Parameters

selecedNode

the selected wich was selected

Is called a node is selected

Parameters

selecedNode

the selected wich was selected

void TestPanel::update ( )

privateslot

Updates the panel if the node model changes.

void TestPanel::nodeSelected ( QListWidgetItem *  listItem )

privateslot

Updates the scene and the panel if a node is selected in the panel.

void TestPanel::showDiscription ( bool  description )

privateslot

Sets the description mode.

Parameters

description

boolean value of the action´s state

Member Data Documentation

NodeModel* Frapper::TestPanel::m_nodeModel

private

Node model.

Node* Frapper::TestPanel::m_node

private

selected node

SceneModel* Frapper::TestPanel::m_sceneModel

private

Scene model.

QListWidget* Frapper::TestPanel::m_ListNodes

private

List Widget to show all nodes in the scene.

QListWidget* Frapper::TestPanel::m_InputParameters

private

List Widget to show all input parameters of the selected node.

QListWidget* Frapper::TestPanel::m_OutputParameters

private

List Widget to show all output parameters of the selected node.

QListWidget* Frapper::TestPanel::m_NodeParameters

private

List Widget to show all non-pin parameters of the selected node.

bool Frapper::TestPanel::m_description

private

Bool if detailed description should be used.

Parameters

description

boolean value of the action´s state

---

The documentation for this class was generated from the following files:

• TestPanel.h
• TestPanel.cpp
