Frapper::NetworkPanel Class Reference

Class for a panel that contains a network editor widget using Qt's graphics-view architecture. More...

#include <NetworkPanel.h>

Inheritance diagram for Frapper::NetworkPanel:

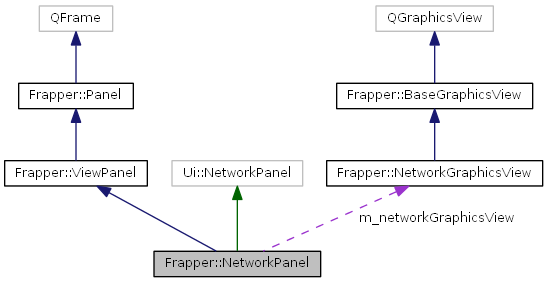

Collaboration diagram for Frapper::NetworkPanel:

Public Member Functions
	NetworkPanel (QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the NetworkPanel class.
virtual	~NetworkPanel ()
	Destructor of the NetworkPanel class.
virtual void	fillToolBars (QToolBar *mainToolBar, QToolBar *panelToolBar)
	Fills the given tool bars in a panel frame with actions for the panel.
NetworkGraphicsView *	getNetworkGraphicsView ()
	Returns the graphics view that is used to display the model's graphics scene.
Public Member Functions inherited from Frapper::ViewPanel
	ViewPanel (Type viewPanelType, QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the ViewPanel class.
Type	getViewPanelType ()
	Returns the type of the view panel.
Public Member Functions inherited from Frapper::Panel
	Panel (QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the Panel class.
virtual	~Panel ()
	Destructor of the Panel class.
QMap< QString, QString >	getPanelParameters ()
	Gets the panel parameters. For load and save functionality.
virtual void	setPanelParameters (const QMap< QString, QString > &parameterMap)
	Sets the panel parameters. For load and save functionality.
virtual void	registerControl (NodeModel *nodeModel, SceneModel *sceneModel)
	Connects the panel with the scene.

Protected Member Functions
void	keyPressEvent (QKeyEvent *event)
	Handles key press events for the widget.

Private Attributes
NetworkGraphicsView *	m_networkGraphicsView
	The graphics view widget to use for displaying the nodes.

Additional Inherited Members
Public Types inherited from Frapper::ViewPanel
enum	Type {   T_Documentation, T_Viewport, T_NetworkEditor, T_HierarchyEditor,   T_ParameterEditor, T_CurveEditor, T_Timeline, T_PluginPanel,   T_PainterPanel, T_NumTypes }
	Nested enumeration for the different types of view panels. More...
Static Public Member Functions inherited from Frapper::Panel
static QString	getTypeName (Type panelType)
	Returns the name of the given panel type.
static QString	getTypeIconName (Type panelType)
	Returns the icon name for the given panel type.
Protected Attributes inherited from Frapper::Panel
QMap< QString, QString >	m_parameterMap
	Map with default values. For load and save functionality.

Detailed Description

Class for a panel that contains a network editor widget using Qt's graphics-view architecture.

Constructor & Destructor Documentation

Frapper::NetworkPanel::NetworkPanel	(	QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0
	)

Constructor of the NetworkPanel class.

Constructors and Destructors.

Parameters

parent	The parent widget the created instance will be a child of.
flags	Extra widget options.

Constructor of the NetworkPanel class.

Parameters

parent	The parent widget the created instance will be a child of.
flags	Extra widget options.

Frapper::NetworkPanel::~NetworkPanel ( )

virtual

Destructor of the NetworkPanel class.

Defined virtual to guarantee that the destructor of a derived class will be called if the instance of the derived class is saved in a variable of its parent class type.

Member Function Documentation

void Frapper::NetworkPanel::fillToolBars ( QToolBar *  mainToolBar, QToolBar *  panelToolBar  )

virtual

Fills the given tool bars in a panel frame with actions for the panel.

Public Functions.

Parameters

mainToolBar	The main tool bar to fill with actions.
panelToolBar	The panel tool bar to fill with actions.

Fills the given tool bars in a panel frame with actions for the panel.

Parameters

mainToolBar	The main tool bar to fill with actions.
panelToolBar	The panel tool bar to fill with actions.

Reimplemented from Frapper::Panel.

NetworkGraphicsView * Frapper::NetworkPanel::getNetworkGraphicsView

(

)

Returns the graphics view that is used to display the model's graphics scene.

Returns

The graphics view that is used to display the model's graphics scene.

void Frapper::NetworkPanel::keyPressEvent ( QKeyEvent *  event )

protected

Handles key press events for the widget.

Protected Events.

Parameters

event

The description of the key event.

Handles key press events for the widget.

Parameters

event

The description of the key event.

Member Data Documentation

NetworkGraphicsView* Frapper::NetworkPanel::m_networkGraphicsView

private

The graphics view widget to use for displaying the nodes.

---

The documentation for this class was generated from the following files:

• NetworkPanel.h
• NetworkPanel.cpp
