Class for graphical representation of scene objects. More...

#include <NodeGraphicsItem.h>

Inheritance diagram for Frapper::NodeGraphicsItem:

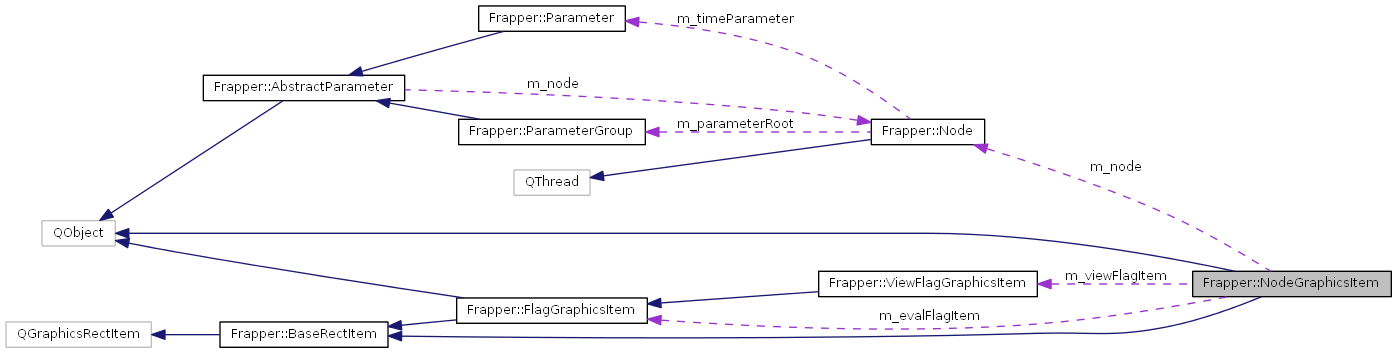

Collaboration diagram for Frapper::NodeGraphicsItem:

[legend]

Public Types
enum	PinDisplayMode { PDM_All, PDM_Connected, PDM_Collapsed }
	Nested enumeration of pin display modes that define how many pins will be displayed in the node graphics item. More...

Public Slots
void	setSelected (bool selected)
	Removes the association to the given ConnectionGraphicsItem from the node graphics item.

void	createConnection (PinGraphicsItem pinItem, Parameter parameter)
	Begins or ends creating a connection between nodes. Is called when a parameter represented by a pin has been clicked.

void	refresh ()
	Refresh the graphics item to reflect changes in the node that it represents.

Signals
void	connectionRequested (Parameter sourceParameter, Parameter targetParameter)
	Signal that is emitted when a connection between the given parameters should be created.

void	connectionRequested (Node sourceNode, Node targetNode)
	Signal that is emitted when a connection between the given nodes should be created. (connect by name)

void	nodeGraphicsItemMoved (const QPointF &pos)
	Signal that is emitted when the item has been moved to a new position.

Public Member Functions
	NodeGraphicsItem (Node *node, QPointF position, const QColor &color)
	Constructor of the NodeGraphicsItem class.

	~NodeGraphicsItem ()
	Destructor of the NodeGraphicsItem class.

void	setEnabled (bool enabled)
	Enables or disables the graphics item.

void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget=0)
	Paints the graphics item into a graphics view.

Node *	getNode () const
	Returns the node that the graphics item represents.

void	resetNode ()
	Resets the node to 0.

void	bringToFront ()
	Sets the z-index of the graphics item so that it will be drawn over all other graphics items in the scene.

void	addConnectionItem (ConnectionGraphicsItem *item)
	Associates a ConnectionGraphicsItem with the node graphics item.

void	removeConnectionItem (ConnectionGraphicsItem *item)
	Removes the association to the given ConnectionGraphicsItem from the node graphics item.

void	removeConnectionItems ()
	Removes all ConnectionGraphicsItem associations from the node graphics item.

void	setPinDisplayMode (PinDisplayMode pinDisplayMode)
	Sets the pin display mode for the item to the given mode.

Public Member Functions inherited from Frapper::BaseRectItem
	BaseRectItem (const QColor &color, bool actAsButton=false, QGraphicsItem *parent=0)
	Constructor of the BaseRectItem class.

	~BaseRectItem ()
	Destructor of the BaseRectItem class.

QRectF	boundingRect () const
	Returns the bounding rectangle of the graphics item.

QColor	getColor () const
	Returns the item's base color.

Static Public Attributes
static const int	ItemWidth = 60
	The standard width for the items.

static const int	ItemBaseHeight = 44
	The base height for the items.

static const int	ItemPinRowHeight = 12
	The height of a row of pins.

Protected Member Functions
void	mousePressEvent (QGraphicsSceneMouseEvent *event)
	Event handler that reacts to mouse press events.

void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event)
	Event handler that reacts to mouse release events.

void	contextMenuEvent (QGraphicsSceneContextMenuEvent *event)
	Event handler that reacts to context menu events.

QVariant	itemChange (GraphicsItemChange change, const QVariant &value)
	Processing on changed item.

Protected Member Functions inherited from Frapper::BaseRectItem
void	hoverEnterEvent (QGraphicsSceneHoverEvent *event)
	Event handler that reacts to hover enter events.

void	hoverLeaveEvent (QGraphicsSceneHoverEvent *event)
	Event handler that reacts to hover leave events.

void	mousePressEvent (QGraphicsSceneMouseEvent *event)
	Event handler that reacts to mouse press events.

void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event)
	Event handler that reacts to mouse release events.

Private Slots
void	connectByNameClicked ()
	Connect by name has been clicked in context menu.

void	updatePinDisplayMode (QAction *action)
	Updates the node's pin display mode according to the triggered action.

Private Member Functions
void	updatePins ()
	Updates the item according to the pin display mode set to display all pins, only connected pins, or all pins in one collapsed pin.

void	disableOtherPins (PinGraphicsItem pinItem, Parameter parameter)
	Disables all pins in the node item that are of a different parameter type or the same connector types as the parameter that was clicked. Also disables all of the node item's flags. The whole node will be disabled if there are no enabled pins left.

void	beginCreatingConnection (PinGraphicsItem pinItem, Parameter parameter)
	Begins creating a connection between parameters of nodes by creating a new (temporary) connection graphics item that has the given pin as one of its end points. Is called when a parameter represented by a pin is clicked.

void	endCreatingConnection (PinGraphicsItem pinItem, Parameter parameter)
	Ends creating a connection between parameters of nodes by keeping the temporarily created connection graphics item that has the given pin as one of its end points, or destroying it when creating the connection is aborted. Is called when a parameter represented by a pin is clicked.

Private Attributes
Node *	m_node
	The node that the graphics item represents.

FlagGraphicsItem *	m_evalFlagItem
	The node's eval flag item.

ViewFlagGraphicsItem *	m_viewFlagItem
	The node's view flag item.

PinDisplayMode	m_pinDisplayMode
	The pin display mode that defines how many pins will be displayed in the node graphics item.

QList< PinGraphicsItem * >	m_inputPins
	The list of input pins to display in the item.

QList< PinGraphicsItem * >	m_outputPins
	The list of output pins to display in the item.

QMap< unsigned int, ConnectionGraphicsItem * >	m_connectionItems
	All ConnectionGraphicsItems connected to this item.

QMenu	m_nodeContextMenu
	The node context menu.

QMenu	m_pinContextMenu
	The pin context menu.

Static Private Attributes
static int	s_numberOfNodeGraphicsItems = 0
	The number of node graphics items created for the current scene.

Additional Inherited Members
Protected Attributes inherited from Frapper::BaseRectItem
QColor	m_color
	The item's base color.

bool	m_actAsButton
	Flag that states whether the item should act as a button.

bool	m_hovered
	Flag that states whether the item is currently hovered by the mouse pointer.

bool	m_clicked
	Flag that states whether the item is currently clicked by the mouse pointer (i.e. a mouse button is pressed).

Detailed Description

Class for graphical representation of scene objects.

Inheritance Diagram

[legend]

Member Enumeration Documentation

enum Frapper::NodeGraphicsItem::PinDisplayMode

Nested enumeration of pin display modes that define how many pins will be displayed in the node graphics item.

Enumerator:

PDM_All
PDM_Connected
PDM_Collapsed

Constructor & Destructor Documentation

Frapper::NodeGraphicsItem::NodeGraphicsItem	(	Node *	node,
		QPointF	position,
		const QColor &	color
	)

Constructor of the NodeGraphicsItem class.

Constructors and Destructors.

Parameters

node	The node that the graphics item represents.
position	The initial position for the graphics item.
color	The color in which to draw the graphics item.

Constructor of the NodeGraphicsItem class.

Parameters

node	The node that the graphics item represents.
position	The initial position for the graphics item.
color	The color in which to draw the graphics item.

Frapper::NodeGraphicsItem::~NodeGraphicsItem ( )

Destructor of the NodeGraphicsItem class.

Member Function Documentation

void Frapper::NodeGraphicsItem::setEnabled ( bool enabled )

Enables or disables the graphics item.

Public Functions.

Parameters

enabled The new enabled state for the item.

Enables or disables the graphics item.

Parameters

enabled The new enabled state for the item.

void Frapper::NodeGraphicsItem::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	option,
		QWidget *	widget = `0`
	)

virtual

Paints the graphics item into a graphics view.

Parameters

painter	The object to use for painting.
option	Style options for painting the graphics item.
widget	The widget into which to paint the graphics item.

Implements Frapper::BaseRectItem.

Node * Frapper::NodeGraphicsItem::getNode ( ) const

Returns the node that the graphics item represents.

Returns: The node that the graphics item represents.

void Frapper::NodeGraphicsItem::resetNode ( )

Resets the node to 0.

Should be called when the node that the graphics item represents will be destroyed.

Temporary. Should be replaced by improved code when destroying nodes in the scene model.

void Frapper::NodeGraphicsItem::bringToFront ( )

Sets the z-index of the graphics item so that it will be drawn over all other graphics items in the scene.

void Frapper::NodeGraphicsItem::addConnectionItem ( ConnectionGraphicsItem * item )

Associates a ConnectionGraphicsItem with the node graphics item.

Parameters

item	The item to associate with the node graphics item.

void Frapper::NodeGraphicsItem::removeConnectionItem ( ConnectionGraphicsItem * item )

Removes the association to the given ConnectionGraphicsItem from the node graphics item.

Parameters

item	The item to no longer associate with the node graphics item.

void Frapper::NodeGraphicsItem::removeConnectionItems ( )

Removes all ConnectionGraphicsItem associations from the node graphics item.

void Frapper::NodeGraphicsItem::setPinDisplayMode ( NodeGraphicsItem::PinDisplayMode pinDisplayMode )

Sets the pin display mode for the item to the given mode.

Parameters

pinDisplayMode The pin display mode to set for the item.

void Frapper::NodeGraphicsItem::setSelected ( bool selected )

slot

Removes the association to the given ConnectionGraphicsItem from the node graphics item.

Public Slots.

Parameters

item	The item to no longer associate with the node graphics item. Updates the selected state of the graphics item according to the given value.

This function is needed because QGraphicsItem::setSelected() is not a slot.

Parameters

selected The new selected state for the graphics item.

Updates the selected state of the graphics item according to the given value.

This function is needed because QGraphicsItem::setSelected() is not a slot.

Parameters

selected The new selected state for the graphics item.

void Frapper::NodeGraphicsItem::createConnection	(	PinGraphicsItem *	pinItem,
		Parameter *	parameter
	)

slot

Begins or ends creating a connection between nodes. Is called when a parameter represented by a pin has been clicked.

Parameters

pinItem	The pin graphics item representing the parameter.
parameter	The parameter that was clicked.

void Frapper::NodeGraphicsItem::refresh ( )

slot

Refresh the graphics item to reflect changes in the node that it represents.

void Frapper::NodeGraphicsItem::connectionRequested	(	Parameter *	sourceParameter,
		Parameter *	targetParameter
	)

signal

Signal that is emitted when a connection between the given parameters should be created.

The parameters to be connected must have the same parameter type.

Parameters

sourceParameter	The output parameter of the source node to connect.
targetParameter	The input parameter of the target node to connect.

void Frapper::NodeGraphicsItem::connectionRequested	(	Node *	sourceNode,
		Node *	targetNode
	)

signal

Signal that is emitted when a connection between the given nodes should be created. (connect by name)

The parameters to be connected must have the same parameter type.

Parameters

sourceNode	The source node.
targetNode	The target node.

void Frapper::NodeGraphicsItem::nodeGraphicsItemMoved ( const QPointF & pos )

signal

Signal that is emitted when the item has been moved to a new position.

Parameters

pos	The position that the item has moved to.

void Frapper::NodeGraphicsItem::mousePressEvent ( QGraphicsSceneMouseEvent * event )

protected

Event handler that reacts to mouse press events.

Protected Functions.

Parameters

event The object containing details about the event.

Event handler that reacts to mouse press events.

Parameters

event The object containing details about the event.

void Frapper::NodeGraphicsItem::mouseReleaseEvent ( QGraphicsSceneMouseEvent * event )

protected

Event handler that reacts to mouse release events.

Parameters

event The object containing details about the event.

void Frapper::NodeGraphicsItem::contextMenuEvent ( QGraphicsSceneContextMenuEvent * event )

protected

Event handler that reacts to context menu events.

Parameters

event The object containing details about the event.

QVariant Frapper::NodeGraphicsItem::itemChange	(	GraphicsItemChange	change,
		const QVariant &	value
	)

protected

Processing on changed item.

void Frapper::NodeGraphicsItem::updatePins ( )

private

Updates the item according to the pin display mode set to display all pins, only connected pins, or all pins in one collapsed pin.

Private Functions.

void Frapper::NodeGraphicsItem::disableOtherPins	(	PinGraphicsItem *	pinItem,
		Parameter *	parameter
	)

private

Disables all pins in the node item that are of a different parameter type or the same connector types as the parameter that was clicked. Also disables all of the node item's flags. The whole node will be disabled if there are no enabled pins left.

Disables all pins in the node item that are of a different parameter type or the same pin types as the parameter that was clicked. Also disables all of the node item's flags. The whole node will be disabled if there are no enabled pins left.

Parameters

pinItem	The pin graphics item representing the parameter that was clicked.
parameter	The parameter that was clicked.

void Frapper::NodeGraphicsItem::beginCreatingConnection	(	PinGraphicsItem *	pinItem,
		Parameter *	parameter
	)

private

Begins creating a connection between parameters of nodes by creating a new (temporary) connection graphics item that has the given pin as one of its end points. Is called when a parameter represented by a pin is clicked.

Parameters

pinItem	The pin graphics item representing the parameter that was clicked.
parameter	The parameter that was clicked.

See Also: parameterClicked; endCreatingConnection

void Frapper::NodeGraphicsItem::endCreatingConnection	(	PinGraphicsItem *	pinItem,
		Parameter *	parameter
	)

private

Ends creating a connection between parameters of nodes by keeping the temporarily created connection graphics item that has the given pin as one of its end points, or destroying it when creating the connection is aborted. Is called when a parameter represented by a pin is clicked.

Parameters

pinItem	The pin graphics item representing the parameter that was clicked.
parameter	The parameter that was clicked.

See Also: parameterClicked; beginCreatingConnection

void Frapper::NodeGraphicsItem::connectByNameClicked ( )

privateslot

Connect by name has been clicked in context menu.

void Frapper::NodeGraphicsItem::updatePinDisplayMode ( QAction * action )

privateslot

Updates the node's pin display mode according to the triggered action.

Private Slots.

Parameters

action The action that was triggered.

Updates the node's pin display mode according to the triggered action.

Parameters

action The action that was triggered.

Member Data Documentation

const int Frapper::NodeGraphicsItem::ItemWidth = 60

static

The standard width for the items.

const int Frapper::NodeGraphicsItem::ItemBaseHeight = 44

static

The base height for the items.

const int Frapper::NodeGraphicsItem::ItemPinRowHeight = 12

static

The height of a row of pins.

int Frapper::NodeGraphicsItem::s_numberOfNodeGraphicsItems = 0

staticprivate

The number of node graphics items created for the current scene.

Private Static Data.

Node* Frapper::NodeGraphicsItem::m_node

private

The node that the graphics item represents.

FlagGraphicsItem* Frapper::NodeGraphicsItem::m_evalFlagItem

private

The node's eval flag item.

ViewFlagGraphicsItem* Frapper::NodeGraphicsItem::m_viewFlagItem

private

The node's view flag item.

PinDisplayMode Frapper::NodeGraphicsItem::m_pinDisplayMode

private

The pin display mode that defines how many pins will be displayed in the node graphics item.

QList<PinGraphicsItem *> Frapper::NodeGraphicsItem::m_inputPins

private

The list of input pins to display in the item.

QList<PinGraphicsItem *> Frapper::NodeGraphicsItem::m_outputPins

private

The list of output pins to display in the item.

QMap<unsigned int, ConnectionGraphicsItem *> Frapper::NodeGraphicsItem::m_connectionItems

private

All ConnectionGraphicsItems connected to this item.

QMenu Frapper::NodeGraphicsItem::m_nodeContextMenu

private

The node context menu.

QMenu Frapper::NodeGraphicsItem::m_pinContextMenu

private

The pin context menu.
