Class for graphical representation of node connector pins. More...

#include <PinGraphicsItem.h>

Inheritance diagram for Frapper::PinGraphicsItem:

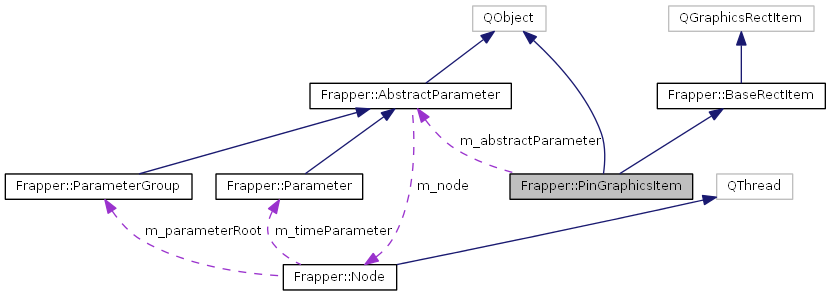

Collaboration diagram for Frapper::PinGraphicsItem:

[legend]

Signals
void	parameterClicked (PinGraphicsItem pinItem, Parameter parameter)
	Signal that is emitted when a parameter represented by the pin has been clicked. Is either emitted when a pin representing one parameter only itself has been clicked, or when an entry in the context menu of a pin representing a parameter group has been clicked.

Public Member Functions
	PinGraphicsItem (QGraphicsItem parent, int index, Parameter parameter)
	Constructor of the PinGraphicsItem class. Creates a pin graphics item representing the given parameter.

	PinGraphicsItem (QGraphicsItem parent, int index, ParameterGroup parameterGroup, Parameter::PinType pinType)
	Constructor of the PinGraphicsItem class. Creates a pin graphics item representing all parameters in the given parameter group.

	PinGraphicsItem (QGraphicsItem parent, int index, ParameterGroup parameterGroup, Parameter::PinType pinType, bool connected)
	Constructor of the PinGraphicsItem class. Creates a pin graphics item representing only connected or unconnected parameters in the given parameter group.

	~PinGraphicsItem ()
	Destructor of the PinGraphicsItem class.

virtual void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget=0)
	Paints the graphics item into a graphics view.

QPointF	center () const
	Returns the center point of the pin item.

void	setEnabled (bool enabled)
	Enables or disables the graphics item.

bool	setEnabled (Parameter::Type parameterType, Parameter::PinType pinType)
	Enables the pin graphics item if it represents the given parameter type and pin type.

Parameter::PinType	getPinType () const
	Returns the pin's type.

bool	represents (Parameter *parameter) const
	Returns whether the pin represents the given parameter.

bool	represents (Parameter::Type parameterType) const
	Returns whether the pin represents parameters of the given type.

Public Member Functions inherited from Frapper::BaseRectItem
	BaseRectItem (const QColor &color, bool actAsButton=false, QGraphicsItem *parent=0)
	Constructor of the BaseRectItem class.

	~BaseRectItem ()
	Destructor of the BaseRectItem class.

QRectF	boundingRect () const
	Returns the bounding rectangle of the graphics item.

QColor	getColor () const
	Returns the item's base color.

Protected Member Functions
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event)
	Event handler that reacts to mouse release events.

void	contextMenuEvent (QGraphicsSceneContextMenuEvent *event)
	Event handler that reacts to context menu events.

Protected Member Functions inherited from Frapper::BaseRectItem
void	hoverEnterEvent (QGraphicsSceneHoverEvent *event)
	Event handler that reacts to hover enter events.

void	hoverLeaveEvent (QGraphicsSceneHoverEvent *event)
	Event handler that reacts to hover leave events.

void	mousePressEvent (QGraphicsSceneMouseEvent *event)
	Event handler that reacts to mouse press events.

void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event)
	Event handler that reacts to mouse release events.

Private Types
enum	ConnectedType { CT_All, CT_Connected, CT_NonConnected }
	Nested enumeration for the different types of connected states the pin represents. A pin can represent all parameters in a parameter group, just those that are connected, or just those that are not connected. More...

Private Slots
void	removeParameter ()
	Removes the parameter (m_abstractParameter). E.g. on deletion.

Private Member Functions
void	fillMenu (QMenu menu, ParameterGroup parameterGroup)
	Fills the given menu with actions and sub menus for the parameters in the given parameter group.

Private Attributes
AbstractParameter *	m_abstractParameter
	The parameter or parameter group the pin represents.

bool	m_isGroup
	Represented parameter is group.

bool	m_isRootGroup
	Represented parameter is root group.

Parameter::PinType	m_pinType
	The type of parameters in a parameter group the pin represents.

ConnectedType	m_connectedType
	The connected type of parameters in a parameter group the pin represents. A pin can represent all parameters in a parameter group, just those that are connected, or just those that are not connected.

Parameter::Type	m_parameterTypeFilter
	The parameter type to filter in the context menu.

Additional Inherited Members
Protected Attributes inherited from Frapper::BaseRectItem
QColor	m_color
	The item's base color.

bool	m_actAsButton
	Flag that states whether the item should act as a button.

bool	m_hovered
	Flag that states whether the item is currently hovered by the mouse pointer.

bool	m_clicked
	Flag that states whether the item is currently clicked by the mouse pointer (i.e. a mouse button is pressed).

Detailed Description

Class for graphical representation of node connector pins.

Inheritance Diagram

[legend]

Member Enumeration Documentation

enum Frapper::PinGraphicsItem::ConnectedType

private

Nested enumeration for the different types of connected states the pin represents. A pin can represent all parameters in a parameter group, just those that are connected, or just those that are not connected.

Enumerator:

CT_All
CT_Connected
CT_NonConnected

Constructor & Destructor Documentation

Frapper::PinGraphicsItem::PinGraphicsItem	(	QGraphicsItem *	parent,
		int	index,
		Parameter *	parameter
	)

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing the given parameter.

Constructors and Destructors.

Parameters

parent	The graphics item this item will be a child of.
index	The index of the pin in a list of pins.
parameter	The parameter this pin item represents.

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing the given parameter.

Parameters

parent	The graphics item this item will be a child of.
index	The index of the pin in a list of pins.
parameter	The parameter this pin item represents.

Frapper::PinGraphicsItem::PinGraphicsItem	(	QGraphicsItem *	parent,
		int	index,
		ParameterGroup *	parameterGroup,
		Parameter::PinType	pinType
	)

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing all parameters in the given parameter group.

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing the parameters in the given parameter group.

Parameters

parent	The graphics item this item will be a child of.
index	The index of the pin in a list of pins.
parameterGroup	The parameter group this pin item represents.
pinType	The type that states whether the item represents input or output parameters in the given group.
parent	The graphics item this item will be a child of.
index	The index of the pin in a list of pins.
parameterGroup	The parameter group this pin item represents.
pinType	The type that states whether the item represents input or output parameters in the given group.
connected	Flag that states whether the item represents connected parameters only.

Frapper::PinGraphicsItem::PinGraphicsItem	(	QGraphicsItem *	parent,
		int	index,
		ParameterGroup *	parameterGroup,
		Parameter::PinType	pinType,
		bool	connected
	)

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing only connected or unconnected parameters in the given parameter group.

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing the parameters in the given parameter group.

Parameters

parent	The graphics item this item will be a child of.
index	The index of the pin in a list of pins.
parameterGroup	The parameter group this pin item represents.
pinType	The type that states whether the item represents input or output parameters in the given group.
connected	Flag that states whether the item represents connected or unconnected parameters.
parent	The graphics item this item will be a child of.
index	The index of the pin in a list of pins.
parameterGroup	The parameter group this pin item represents.
pinType	The type that states whether the item represents input or output parameters in the given group.
connected	Flag that states whether the item represents connected parameters only.

Frapper::PinGraphicsItem::~PinGraphicsItem ( )

Destructor of the PinGraphicsItem class.

Member Function Documentation

void Frapper::PinGraphicsItem::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	option,
		QWidget *	widget = `0`
	)

virtual

Paints the graphics item into a graphics view.

Public Functions.

Parameters

painter	The object to use for painting.
option	Style options for painting the graphics item.
widget	The widget into which to paint the graphics item.

Paints the graphics item into a graphics view.

Parameters

painter	The object to use for painting.
option	Style options for painting the graphics item.
widget	The widget into which to paint the graphics item.

Implements Frapper::BaseRectItem.

QPointF Frapper::PinGraphicsItem::center ( ) const

Returns the center point of the pin item.

Returns: The center point of the pin item.

void Frapper::PinGraphicsItem::setEnabled ( bool enabled )

Enables or disables the graphics item.

Parameters

enabled The new enabled state for the item.

bool Frapper::PinGraphicsItem::setEnabled	(	Parameter::Type	parameterType,
		Parameter::PinType	pinType
	)

Enables the pin graphics item if it represents the given parameter type and pin type.

Parameters

parameterType	The parameter type of pins to enable.
pinType	The pin type of pins to enable.

Returns: True if the pin was enabled, otherwise False.

Parameter::PinType Frapper::PinGraphicsItem::getPinType ( ) const

Returns the pin's type.

Returns: The pin's type.

bool Frapper::PinGraphicsItem::represents ( Parameter * parameter ) const

Returns whether the pin represents the given parameter.

Parameters

parameter The parameter to check.

Returns: True if the pin represents the given parameter, otherwise False.

bool Frapper::PinGraphicsItem::represents ( Parameter::Type parameterType ) const

Returns whether the pin represents parameters of the given type.

Parameters

parameterType The parameter type to check.

Returns: True if the pin represents parameters of the given type, otherwise False.

void Frapper::PinGraphicsItem::parameterClicked	(	PinGraphicsItem *	pinItem,
		Parameter *	parameter
	)

signal

Signal that is emitted when a parameter represented by the pin has been clicked. Is either emitted when a pin representing one parameter only itself has been clicked, or when an entry in the context menu of a pin representing a parameter group has been clicked.

Parameters

pinItem	The pin item emitting the signal.
parameter	The parameter that was clicked.

void Frapper::PinGraphicsItem::mouseReleaseEvent ( QGraphicsSceneMouseEvent * event )

protected

Event handler that reacts to mouse release events.

Protected Functions.

Parameters

event The object containing details about the event.

Event handler that reacts to mouse release events.

Parameters

event The object containing details about the event.

void Frapper::PinGraphicsItem::contextMenuEvent ( QGraphicsSceneContextMenuEvent * event )

protected

Event handler that reacts to context menu events.

Parameters

event The object containing details about the event.

void Frapper::PinGraphicsItem::fillMenu	(	QMenu *	menu,
		ParameterGroup *	parameterGroup
	)

private

Fills the given menu with actions and sub menus for the parameters in the given parameter group.

Private Functions.

Parameters

menu	The menu to which the actions and sub menus will be added.
parameterGroup	The parameter group to create the context menu for.

Fills the given menu with actions and sub menus for the parameters in the given parameter group.

Parameters

menu	The menu to which the actions and sub menus will be added.
parameterGroup	The parameter group to create the context menu for.

void Frapper::PinGraphicsItem::removeParameter ( )

privateslot

Removes the parameter (m_abstractParameter). E.g. on deletion.

Member Data Documentation

AbstractParameter* Frapper::PinGraphicsItem::m_abstractParameter

private

The parameter or parameter group the pin represents.

bool Frapper::PinGraphicsItem::m_isGroup

private

Represented parameter is group.

bool Frapper::PinGraphicsItem::m_isRootGroup

private

Represented parameter is root group.

Parameter::PinType Frapper::PinGraphicsItem::m_pinType

private

The type of parameters in a parameter group the pin represents.

ConnectedType Frapper::PinGraphicsItem::m_connectedType

private

The connected type of parameters in a parameter group the pin represents. A pin can represent all parameters in a parameter group, just those that are connected, or just those that are not connected.

Parameter::Type Frapper::PinGraphicsItem::m_parameterTypeFilter

private

The parameter type to filter in the context menu.

The documentation for this class was generated from the following files:

Signals

Public Member Functions

Protected Member Functions

Private Types

Private Slots

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
