PinGraphicsItem Class Reference

Class for graphical representation of node connector pins. More...

#include <PinGraphicsItem.h>

Inheritance diagram for PinGraphicsItem:

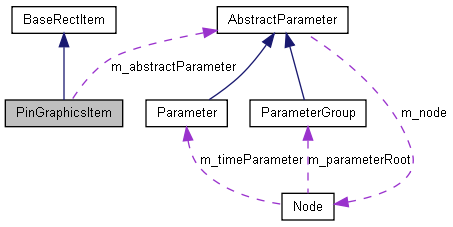

Collaboration diagram for PinGraphicsItem:

[legend]

List of all members.

Signals

void parameterClicked (PinGraphicsItem *pinItem, Parameter *parameter)

Signal that is emitted when a parameter represented by the pin has been clicked. Is either emitted when a pin representing one parameter only itself has been clicked, or when an entry in the context menu of a pin representing a parameter group has been clicked.

Public Member Functions

PinGraphicsItem (QGraphicsItem *parent, int index, Parameter *parameter)

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing the given parameter.

PinGraphicsItem (QGraphicsItem *parent, int index, ParameterGroup *parameterGroup, Parameter::PinType pinType)

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing all parameters in the given parameter group.

PinGraphicsItem (QGraphicsItem *parent, int index, ParameterGroup *parameterGroup, Parameter::PinType pinType, bool connected)

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing only connected or unconnected parameters in the given parameter group.

~PinGraphicsItem ()

Destructor of the PinGraphicsItem class.

virtual void paint (QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget=0)

Paints the graphics item into a graphics view.

QPointF center () const

Returns the center point of the pin item.

void setEnabled (bool enabled)

Enables or disables the graphics item.

bool setEnabled (Parameter::Type parameterType, Parameter::PinType pinType)

Enables the pin graphics item if it represents the given parameter type and pin type.

Parameter::PinType getPinType () const

Returns the pin's type.

bool represents (Parameter *parameter) const

Returns whether the pin represents the given parameter.

bool represents (Parameter::Type parameterType) const

Returns whether the pin represents parameters of the given type.

Protected Member Functions

void mouseReleaseEvent (QGraphicsSceneMouseEvent *event)

Event handler that reacts to mouse release events.

void contextMenuEvent (QGraphicsSceneContextMenuEvent *event)

Event handler that reacts to context menu events.

Private Types

enum ConnectedType { CT_All, CT_Connected, CT_NonConnected }

Nested enumeration for the different types of connected states the pin represents. A pin can represent all parameters in a parameter group, just those that are connected, or just those that are not connected. More...

Private Slots

void removeParameter ()

Removes the parameter (m_abstractParameter). E.g. on deletion.

Private Member Functions

void fillMenu (QMenu *menu, ParameterGroup *parameterGroup)

Fills the given menu with actions and sub menus for the parameters in the given parameter group.

Private Attributes

AbstractParameter * m_abstractParameter

The parameter or parameter group the pin represents.

bool m_isGroup

Represented parameter is group.

bool m_isRootGroup

Represented parameter is root group.

Parameter::PinType m_pinType

The type of parameters in a parameter group the pin represents.

ConnectedType m_connectedType

The connected type of parameters in a parameter group the pin represents. A pin can represent all parameters in a parameter group, just those that are connected, or just those that are not connected.

Parameter::Type m_parameterTypeFilter

The parameter type to filter in the context menu.

Detailed Description

Class for graphical representation of node connector pins.

Inheritance Diagram

[legend]

Member Enumeration Documentation

enum PinGraphicsItem::ConnectedType [private]

Nested enumeration for the different types of connected states the pin represents. A pin can represent all parameters in a parameter group, just those that are connected, or just those that are not connected.

Enumerator:

CT_All
CT_Connected
CT_NonConnected

Constructor & Destructor Documentation

PinGraphicsItem::PinGraphicsItem	(	QGraphicsItem *	parent,
		int	index,
		Parameter *	parameter
	)

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing the given parameter.

Constructors and Destructors.

Parameters:

	parent	The graphics item this item will be a child of.
	index	The index of the pin in a list of pins.
	parameter	The parameter this pin item represents.

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing the given parameter.

Parameters:

	parent	The graphics item this item will be a child of.
	index	The index of the pin in a list of pins.
	parameter	The parameter this pin item represents.

PinGraphicsItem::PinGraphicsItem	(	QGraphicsItem *	parent,
		int	index,
		ParameterGroup *	parameterGroup,
		Parameter::PinType	pinType
	)

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing all parameters in the given parameter group.

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing the parameters in the given parameter group.

Parameters:

	parent	The graphics item this item will be a child of.
	index	The index of the pin in a list of pins.
	parameterGroup	The parameter group this pin item represents.
	pinType	The type that states whether the item represents input or output parameters in the given group.
	parent	The graphics item this item will be a child of.
	index	The index of the pin in a list of pins.
	parameterGroup	The parameter group this pin item represents.
	pinType	The type that states whether the item represents input or output parameters in the given group.
	connected	Flag that states whether the item represents connected parameters only.

PinGraphicsItem::PinGraphicsItem	(	QGraphicsItem *	parent,
		int	index,
		ParameterGroup *	parameterGroup,
		Parameter::PinType	pinType,
		bool	connected
	)

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing only connected or unconnected parameters in the given parameter group.

Constructor of the PinGraphicsItem class. Creates a pin graphics item representing the parameters in the given parameter group.

Parameters:

	parent	The graphics item this item will be a child of.
	index	The index of the pin in a list of pins.
	parameterGroup	The parameter group this pin item represents.
	pinType	The type that states whether the item represents input or output parameters in the given group.
	connected	Flag that states whether the item represents connected or unconnected parameters.
	parent	The graphics item this item will be a child of.
	index	The index of the pin in a list of pins.
	parameterGroup	The parameter group this pin item represents.
	pinType	The type that states whether the item represents input or output parameters in the given group.
	connected	Flag that states whether the item represents connected parameters only.

PinGraphicsItem::~PinGraphicsItem ( )

Destructor of the PinGraphicsItem class.

Member Function Documentation

void PinGraphicsItem::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	option,
		QWidget *	widget = `0`
	)			`[virtual]`

Paints the graphics item into a graphics view.

Public Functions.

Parameters:

	painter	The object to use for painting.
	option	Style options for painting the graphics item.
	widget	The widget into which to paint the graphics item.

Paints the graphics item into a graphics view.

Parameters:

	painter	The object to use for painting.
	option	Style options for painting the graphics item.
	widget	The widget into which to paint the graphics item.

Implements BaseRectItem.

QPointF PinGraphicsItem::center ( ) const

Returns the center point of the pin item.

Returns:: The center point of the pin item.

void PinGraphicsItem::setEnabled ( bool enabled )

Enables or disables the graphics item.

Parameters:

enabled

The new enabled state for the item.

bool PinGraphicsItem::setEnabled	(	Parameter::Type	parameterType,
		Parameter::PinType	pinType
	)

Enables the pin graphics item if it represents the given parameter type and pin type.

Parameters:

	parameterType	The parameter type of pins to enable.
	pinType	The pin type of pins to enable.

Returns:: True if the pin was enabled, otherwise False.

Parameter::PinType PinGraphicsItem::getPinType ( ) const

Returns the pin's type.

Returns:: The pin's type.

bool PinGraphicsItem::represents ( Parameter * parameter ) const

Returns whether the pin represents the given parameter.

Parameters:

parameter

The parameter to check.

Returns:: True if the pin represents the given parameter, otherwise False.

bool PinGraphicsItem::represents ( Parameter::Type parameterType ) const

Returns whether the pin represents parameters of the given type.

Parameters:

parameterType

The parameter type to check.

Returns:: True if the pin represents parameters of the given type, otherwise False.

void PinGraphicsItem::parameterClicked	(	PinGraphicsItem *	pinItem,
		Parameter *	parameter
	)			`[signal]`

Signal that is emitted when a parameter represented by the pin has been clicked. Is either emitted when a pin representing one parameter only itself has been clicked, or when an entry in the context menu of a pin representing a parameter group has been clicked.

Parameters:

	pinItem	The pin item emitting the signal.
	parameter	The parameter that was clicked.

void PinGraphicsItem::mouseReleaseEvent ( QGraphicsSceneMouseEvent * event ) [protected]

Event handler that reacts to mouse release events.

Protected Functions.

Parameters:

event

The object containing details about the event.

Event handler that reacts to mouse release events.

Parameters:

event

The object containing details about the event.

Reimplemented from BaseRectItem.

void PinGraphicsItem::contextMenuEvent ( QGraphicsSceneContextMenuEvent * event ) [protected]

Event handler that reacts to context menu events.

Parameters:

event

The object containing details about the event.

void PinGraphicsItem::fillMenu	(	QMenu *	menu,
		ParameterGroup *	parameterGroup
	)			`[private]`

Fills the given menu with actions and sub menus for the parameters in the given parameter group.

Private Functions.

Parameters:

	menu	The menu to which the actions and sub menus will be added.
	parameterGroup	The parameter group to create the context menu for.

Fills the given menu with actions and sub menus for the parameters in the given parameter group.

Parameters:

	menu	The menu to which the actions and sub menus will be added.
	parameterGroup	The parameter group to create the context menu for.

void PinGraphicsItem::removeParameter ( ) [private, slot]

Removes the parameter (m_abstractParameter). E.g. on deletion.

Member Data Documentation

AbstractParameter* PinGraphicsItem::m_abstractParameter [private]

The parameter or parameter group the pin represents.

bool PinGraphicsItem::m_isGroup [private]

Represented parameter is group.

bool PinGraphicsItem::m_isRootGroup [private]

Represented parameter is root group.

Parameter::PinType PinGraphicsItem::m_pinType [private]

The type of parameters in a parameter group the pin represents.

ConnectedType PinGraphicsItem::m_connectedType [private]

The connected type of parameters in a parameter group the pin represents. A pin can represent all parameters in a parameter group, just those that are connected, or just those that are not connected.

Parameter::Type PinGraphicsItem::m_parameterTypeFilter [private]

The parameter type to filter in the context menu.

The documentation for this class was generated from the following files:


Signals
void	parameterClicked (PinGraphicsItem pinItem, Parameter parameter)
	Signal that is emitted when a parameter represented by the pin has been clicked. Is either emitted when a pin representing one parameter only itself has been clicked, or when an entry in the context menu of a pin representing a parameter group has been clicked.
Public Member Functions
	PinGraphicsItem (QGraphicsItem parent, int index, Parameter parameter)
	Constructor of the PinGraphicsItem class. Creates a pin graphics item representing the given parameter.
	PinGraphicsItem (QGraphicsItem parent, int index, ParameterGroup parameterGroup, Parameter::PinType pinType)
	Constructor of the PinGraphicsItem class. Creates a pin graphics item representing all parameters in the given parameter group.
	PinGraphicsItem (QGraphicsItem parent, int index, ParameterGroup parameterGroup, Parameter::PinType pinType, bool connected)
	Constructor of the PinGraphicsItem class. Creates a pin graphics item representing only connected or unconnected parameters in the given parameter group.
	~PinGraphicsItem ()
	Destructor of the PinGraphicsItem class.
virtual void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget=0)
	Paints the graphics item into a graphics view.
QPointF	center () const
	Returns the center point of the pin item.
void	setEnabled (bool enabled)
	Enables or disables the graphics item.
bool	setEnabled (Parameter::Type parameterType, Parameter::PinType pinType)
	Enables the pin graphics item if it represents the given parameter type and pin type.
Parameter::PinType	getPinType () const
	Returns the pin's type.
bool	represents (Parameter *parameter) const
	Returns whether the pin represents the given parameter.
bool	represents (Parameter::Type parameterType) const
	Returns whether the pin represents parameters of the given type.
Protected Member Functions
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event)
	Event handler that reacts to mouse release events.
void	contextMenuEvent (QGraphicsSceneContextMenuEvent *event)
	Event handler that reacts to context menu events.
Private Types
enum	ConnectedType { CT_All, CT_Connected, CT_NonConnected }
	Nested enumeration for the different types of connected states the pin represents. A pin can represent all parameters in a parameter group, just those that are connected, or just those that are not connected. More...
Private Slots
void	removeParameter ()
	Removes the parameter (m_abstractParameter). E.g. on deletion.
Private Member Functions
void	fillMenu (QMenu menu, ParameterGroup parameterGroup)
	Fills the given menu with actions and sub menus for the parameters in the given parameter group.
Private Attributes
AbstractParameter *	m_abstractParameter
	The parameter or parameter group the pin represents.
bool	m_isGroup
	Represented parameter is group.
bool	m_isRootGroup
	Represented parameter is root group.
Parameter::PinType	m_pinType
	The type of parameters in a parameter group the pin represents.
ConnectedType	m_connectedType
	The connected type of parameters in a parameter group the pin represents. A pin can represent all parameters in a parameter group, just those that are connected, or just those that are not connected.
Parameter::Type	m_parameterTypeFilter
	The parameter type to filter in the context menu.
