Inheritance diagram for PainterPanel::EllipseItem:

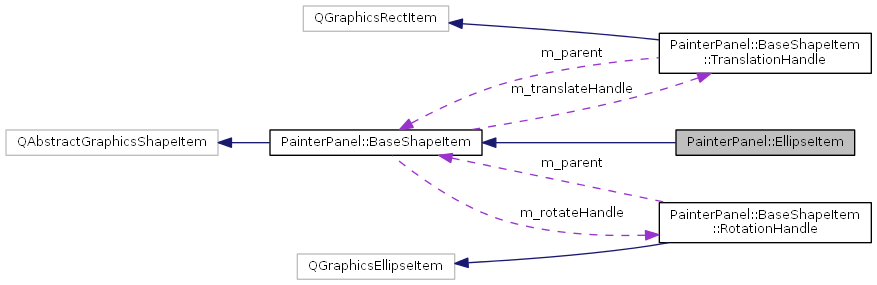

Collaboration diagram for PainterPanel::EllipseItem:

Public Member Functions
	EllipseItem (QPointF startPos, QPen pen, QBrush brush)
	Constructor of the EllipseItem class.

void	updatePosition (QPointF pos)
	Update the second position of the item.

void	addPosition (QPointF pos)
	Update the second position of the item.

void	updateShape ()
	Call this function to update the shape of the item.

virtual ItemType	GetItemType ()
	Get the type of this item.

Public Member Functions inherited from PainterPanel::BaseShapeItem
	BaseShapeItem (QPen pen=QPen(), QBrush brush=QBrush())
	Constructor of the BaseShapeItem class.

virtual	~BaseShapeItem ()
	Destructor of the PainterPanel class.

virtual int	type () const
	Enable the use of qgraphicsitem_cast with this item.

virtual void	skipLastPosition (bool &emptyItem)
	Forget the last position provided by add-/updatePosition()

virtual QRectF	boundingRect () const
	Get the bounding-rect of the shape.

virtual void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget)
	Paint the item with the specified pen and brush Use a yellow pen when the item is selected.

QString	getDescriptionText ()

Additional Inherited Members
Public Types inherited from PainterPanel::BaseShapeItem
enum	ItemType { BASE =0, PAINT, LINE, RECT, CIRCLE, ELLIPSE, POLYGON, POLYLINE, CURVE, CLOSEDCURVE, NUM_ITEMTYPES }

enum	{ Type = UserType + 1 }

Protected Member Functions inherited from PainterPanel::BaseShapeItem
virtual QVariant	itemChange (GraphicsItemChange change, const QVariant &value)
	React on changes of the item.

Protected Attributes inherited from PainterPanel::BaseShapeItem
QPainterPath	m_shape
	The shape of the item to draw.

QList< PointHandle * >	m_points
	The list of point handles.

RotationHandle *	m_rotateHandle
	The handle to rotate this shape item.

TranslationHandle *	m_translateHandle
	The handle to translate this shape item.
