#include <PainterGraphicsItems.h>

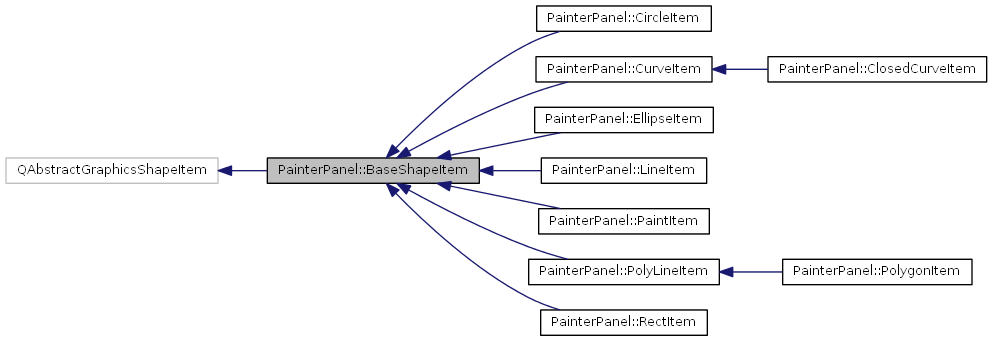

Inheritance diagram for PainterPanel::BaseShapeItem:

[legend]

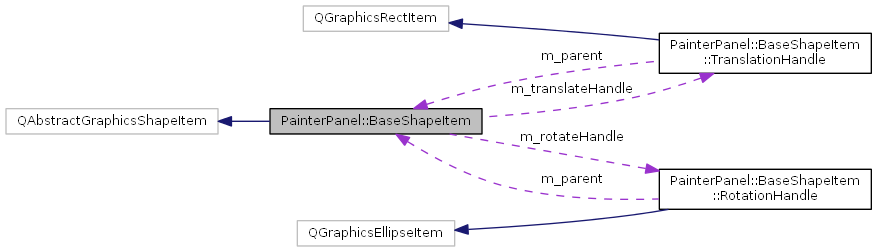

Collaboration diagram for PainterPanel::BaseShapeItem:

Classes
class	PointHandle
	The PointHandle class provides handles to update its parents bounding points. More...

class	RotationHandle
	The RotationHandle class provides handles to update its parents orientation. More...

class	TranslationHandle
	The TranslationHandle class provides handles to update its parents position. More...

Public Types
enum	ItemType { BASE =0, PAINT, LINE, RECT, CIRCLE, ELLIPSE, POLYGON, POLYLINE, CURVE, CLOSEDCURVE, NUM_ITEMTYPES }

enum	{ Type = UserType + 1 }

Public Member Functions
	BaseShapeItem (QPen pen=QPen(), QBrush brush=QBrush())
	Constructor of the BaseShapeItem class.

virtual	~BaseShapeItem ()
	Destructor of the PainterPanel class.

virtual int	type () const
	Enable the use of qgraphicsitem_cast with this item.

virtual ItemType	GetItemType ()
	The item type is used to distinguish between the different types of items.

virtual void	addPosition (QPointF pos)=0
	Add a new position to this item.

virtual void	updatePosition (QPointF pos)=0
	Update the current position of this item.

virtual void	skipLastPosition (bool &emptyItem)
	Forget the last position provided by add-/updatePosition()

virtual QRectF	boundingRect () const
	Get the bounding-rect of the shape.

virtual void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget)
	Paint the item with the specified pen and brush Use a yellow pen when the item is selected.

QString	getDescriptionText ()

Protected Member Functions
virtual void	updateShape ()
	Call this function to update the shape of the item. This function updates the position of the translation and rotation handle.

virtual QVariant	itemChange (GraphicsItemChange change, const QVariant &value)
	React on changes of the item.

Protected Attributes
QPainterPath	m_shape
	The shape of the item to draw.

QList< PointHandle * >	m_points
	The list of point handles.

RotationHandle *	m_rotateHandle
	The handle to rotate this shape item.

TranslationHandle *	m_translateHandle
	The handle to translate this shape item.

Private Member Functions
void	showHandles (bool show=true)
	Show/Hide handles of the item.

Detailed Description

BaseShapeItem class.

This class provides objects handles for bounding points, translation and rotation Implement functions addPosition( QPointF pos ) and updatePosition( QPointF pos ) for custom items

If you override updateShape() for complex shapes, don't forget to call prepareGeometryChange() at the beginning and BaseShapeItem::updateShape() at the end. This file also contains some examples.

Member Enumeration Documentation

enum PainterPanel::BaseShapeItem::ItemType

Enumerator:

BASE
PAINT
LINE
RECT
CIRCLE
ELLIPSE
POLYGON
POLYLINE
CURVE
CLOSEDCURVE
NUM_ITEMTYPES

anonymous enum

Enumerator:

Type

Constructor & Destructor Documentation

PainterPanel::BaseShapeItem::BaseShapeItem	(	QPen	pen = `QPen()`,
		QBrush	brush = `QBrush()`
	)

inline

Constructor of the BaseShapeItem class.

Parameters

penColor	The parent widget the created instance will be a child of.
penWidth	Extra widget options.

virtual PainterPanel::BaseShapeItem::~BaseShapeItem ( )

inlinevirtual

Destructor of the PainterPanel class.

Defined virtual to guarantee that the destructor of a derived class will be called if the instance of the derived class is saved in a variable of its parent class type.

Member Function Documentation

virtual int PainterPanel::BaseShapeItem::type ( ) const

inlinevirtual

Enable the use of qgraphicsitem_cast with this item.

virtual ItemType PainterPanel::BaseShapeItem::GetItemType ( )

inlinevirtual

The item type is used to distinguish between the different types of items.

Reimplemented in PainterPanel::ClosedCurveItem, PainterPanel::CurveItem, PainterPanel::PolygonItem, PainterPanel::PolyLineItem, PainterPanel::EllipseItem, PainterPanel::CircleItem, PainterPanel::RectItem, PainterPanel::LineItem, and PainterPanel::PaintItem.

virtual void PainterPanel::BaseShapeItem::addPosition ( QPointF pos )

pure virtual

Add a new position to this item.

Implemented in PainterPanel::ClosedCurveItem, PainterPanel::CurveItem, PainterPanel::PolyLineItem, PainterPanel::EllipseItem, PainterPanel::CircleItem, PainterPanel::RectItem, PainterPanel::LineItem, and PainterPanel::PaintItem.

virtual void PainterPanel::BaseShapeItem::updatePosition ( QPointF pos )

pure virtual

Update the current position of this item.

Implemented in PainterPanel::ClosedCurveItem, PainterPanel::CurveItem, PainterPanel::PolyLineItem, PainterPanel::EllipseItem, PainterPanel::CircleItem, PainterPanel::RectItem, PainterPanel::LineItem, and PainterPanel::PaintItem.

virtual void PainterPanel::BaseShapeItem::skipLastPosition ( bool & emptyItem )

inlinevirtual

Forget the last position provided by add-/updatePosition()

Parameters

emptyItem Set to true, if this operation creates an empty item, otherwise false

Reimplemented in PainterPanel::ClosedCurveItem, PainterPanel::CurveItem, and PainterPanel::PolyLineItem.

virtual QRectF PainterPanel::BaseShapeItem::boundingRect ( ) const

inlinevirtual

Get the bounding-rect of the shape.

virtual void PainterPanel::BaseShapeItem::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	option,
		QWidget *	widget
	)

inlinevirtual

Paint the item with the specified pen and brush Use a yellow pen when the item is selected.

Reimplemented in PainterPanel::CurveItem.

QString PainterPanel::BaseShapeItem::getDescriptionText ( )

inline

virtual void PainterPanel::BaseShapeItem::updateShape ( )

inlineprotectedvirtual

Call this function to update the shape of the item. This function updates the position of the translation and rotation handle.

Reimplemented in PainterPanel::ClosedCurveItem, PainterPanel::CurveItem, PainterPanel::PolygonItem, PainterPanel::PolyLineItem, PainterPanel::EllipseItem, PainterPanel::CircleItem, PainterPanel::RectItem, and PainterPanel::LineItem.

virtual QVariant PainterPanel::BaseShapeItem::itemChange	(	GraphicsItemChange	change,
		const QVariant &	value
	)

inlineprotectedvirtual

React on changes of the item.

Reimplemented in PainterPanel::CurveItem.

void PainterPanel::BaseShapeItem::showHandles ( bool show = true )

inlineprivate

Show/Hide handles of the item.

Member Data Documentation

QPainterPath PainterPanel::BaseShapeItem::m_shape

protected

The shape of the item to draw.

QList<PointHandle*> PainterPanel::BaseShapeItem::m_points

protected

The list of point handles.

RotationHandle* PainterPanel::BaseShapeItem::m_rotateHandle

protected

The handle to rotate this shape item.

TranslationHandle* PainterPanel::BaseShapeItem::m_translateHandle

protected

The handle to translate this shape item.

The documentation for this class was generated from the following file:

PainterGraphicsItems.h
