Frapper::PainterPanel Class Reference

Class for a panel that contains a curve editor widget for displaying number parameters. More...

#include <PainterPanel.h>

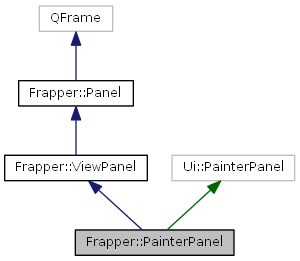

Inheritance diagram for Frapper::PainterPanel:

Collaboration diagram for Frapper::PainterPanel:

Public Member Functions
	PainterPanel (QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the PainterPanel class.
virtual	~PainterPanel ()
	Destructor of the PainterPanel class.
virtual void	fillToolBars (QToolBar *mainToolBar, QToolBar *panelToolBar)
	Fills the given tool bars with actions for the curve editor panel.
Public Member Functions inherited from Frapper::ViewPanel
	ViewPanel (Type viewPanelType, QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the ViewPanel class.
Type	getViewPanelType ()
	Returns the type of the view panel.
Public Member Functions inherited from Frapper::Panel
	Panel (QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the Panel class.
virtual	~Panel ()
	Destructor of the Panel class.
QMap< QString, QString >	getPanelParameters ()
	Gets the panel parameters. For load and save functionality.
virtual void	setPanelParameters (const QMap< QString, QString > &parameterMap)
	Sets the panel parameters. For load and save functionality.
virtual void	registerControl (NodeModel *nodeModel, SceneModel *sceneModel)
	Connects the panel with the scene.

Protected Member Functions
void	keyPressEvent (QKeyEvent *event)
	Handles key press events for the widget.

Private Attributes
QHBoxLayout *	m_hboxLayout
	The layout for horizontal arranging the tree an drawing region.

Additional Inherited Members
Public Types inherited from Frapper::ViewPanel
enum	Type {   T_Documentation, T_Viewport, T_NetworkEditor, T_HierarchyEditor,   T_ParameterEditor, T_CurveEditor, T_Timeline, T_PluginPanel,   T_PainterPanel, T_NumTypes }
	Nested enumeration for the different types of view panels. More...
Static Public Member Functions inherited from Frapper::Panel
static QString	getTypeName (Type panelType)
	Returns the name of the given panel type.
static QString	getTypeIconName (Type panelType)
	Returns the icon name for the given panel type.
Protected Attributes inherited from Frapper::Panel
QMap< QString, QString >	m_parameterMap
	Map with default values. For load and save functionality.

Detailed Description

Class for a panel that contains a curve editor widget for displaying number parameters.

Constructor & Destructor Documentation

PainterPanel::PainterPanel::PainterPanel	(	QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0
	)

Constructor of the PainterPanel class.

Constructors and Destructors.

Parameters

parent	The parent widget the created instance will be a child of.
flags	Extra widget options.

Constructor of the PainterPanel class.

Parameters

parent	The parent widget the created instance will be a child of.
flags	Extra widget options.

PainterPanel::PainterPanel::~PainterPanel ( )

virtual

Destructor of the PainterPanel class.

Destructor of the NetworkPanel class.

Defined virtual to guarantee that the destructor of a derived class will be called if the instance of the derived class is saved in a variable of its parent class type.

Member Function Documentation

void PainterPanel::PainterPanel::fillToolBars ( QToolBar *  mainToolBar, QToolBar *  panelToolBar  )

virtual

Fills the given tool bars with actions for the curve editor panel.

Fills the given tool bars with actions for the PainterPanel view.

Public Functions.

Parameters

mainToolBar	The main tool bar to fill with actions.
panelToolBar	The panel tool bar to fill with actions.

Fills the given tool bars with actions for the painter panel.

Parameters

mainToolBar	The main tool bar to fill with actions.
panelToolBar	The panel tool bar to fill with actions.

Reimplemented from Frapper::Panel.

void Frapper::PainterPanel::keyPressEvent ( QKeyEvent *  event )

protected

Handles key press events for the widget.

Public Slots.

Parameters

event

The description of the key event.

Privata Functions Protected Events Handles key press events for the widget.

Parameters

event

The description of the key event.

Member Data Documentation

QHBoxLayout* Frapper::PainterPanel::m_hboxLayout

private

The layout for horizontal arranging the tree an drawing region.

---

The documentation for this class was generated from the following files:

• old/PainterPanel.h
• old/PainterPanel.cpp
• PainterPanel.cpp
