Class for a panel that contains a curve editor widget for displaying number parameters. More...

#include <CurveEditorPanel.h>

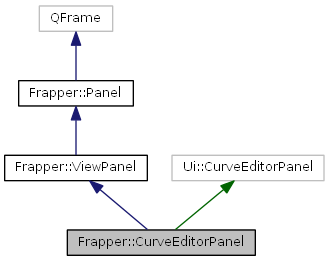

Inheritance diagram for Frapper::CurveEditorPanel:

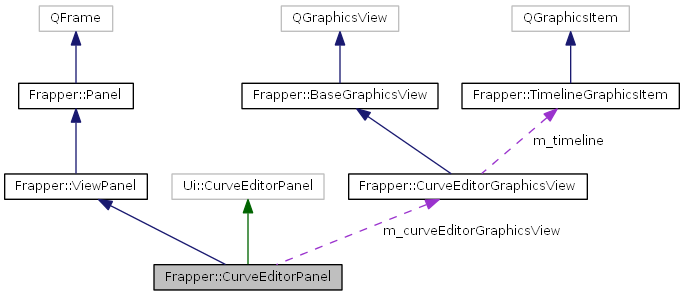

Collaboration diagram for Frapper::CurveEditorPanel:

[legend]

Public Slots
void	updateTree (bool objectsSelected)
	Slot that is called when the selection in the scene model has changed.

void	buildTree (Node *node)
	Initializes the Selection Tree.

void	showCurves ()
	Displays the curves of the given node in the curve editor.

void	setCurrentFrame (const int index) const
	Sets the index of the current frame in the scene's time.

void	changeKeyValues ()
	Sets the value of the selected Keys.

void	scaleKeyValues ()
	Scales the value of the selected Keys.

void	normalizeKeyValues ()
	Scales the values of the shown curve to a maximum of one.

void	muteSelectedParameterGroups ()
	Mutes/unmutes the in treeView selected Parameters.

void	muteAllParameterGroups ()
	Mutes/unmutes all treeView Parameters.

void	unmuteAllParameterGroups ()
	Unmutes all treeView Parameters.

void	updateAllParameters ()
	Updates all treeView Parameters.

Signals
void	drag ()
	Signal that is emitted when a drag event is emited.

Public Member Functions
	CurveEditorPanel (QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the CurveEditorPanel class.

virtual	~CurveEditorPanel ()
	Destructor of the CurveEditorPanel class.

virtual void	fillToolBars (QToolBar mainToolBar, QToolBar panelToolBar)
	Fills the given tool bars with actions for the curve editor panel.

Public Member Functions inherited from Frapper::ViewPanel
	ViewPanel (Type viewPanelType, QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the ViewPanel class.

Type	getViewPanelType ()
	Returns the type of the view panel.

Public Member Functions inherited from Frapper::Panel
	Panel (QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor of the Panel class.

virtual	~Panel ()
	Destructor of the Panel class.

QMap< QString, QString >	getPanelParameters ()
	Gets the panel parameters. For load and save functionality.

virtual void	setPanelParameters (const QMap< QString, QString > &parameterMap)
	Sets the panel parameters. For load and save functionality.

virtual void	registerControl (NodeModel nodeModel, SceneModel sceneModel)
	Connects the panel with the scene.

Protected Member Functions
void	keyPressEvent (QKeyEvent *event)
	Handles key press events for the widget.

Private Member Functions
void	muteItems (QTreeWidgetItem *item)
	Changes color and icon of selected treeView Items and chids.

void	unmuteItems (QTreeWidgetItem *item)
	Changes color and icon of selected treeView Items and chids.

void	updateItems ()
	Updates color and icon of selected treeView Items and chids.

void	fillTree (ParameterGroup rootData, QTreeWidgetItem rootItem)
	Fills the tree view with node data groups.

Private Attributes
QDoubleSpinBox *	m_normalizeSpinBox
	Line edit value for key value overwrite.

QDoubleSpinBox *	m_valueSpinBox
	Line edit value for key value overwrite.

QDoubleSpinBox *	m_scaleSpinBox
	Line edit value for key value overwrite.

QCheckBox *	m_curveCheckBox
	Checkbox which enables/disables view flag for enabled/disabled parameters.

CurveEditorGraphicsView *	m_curveEditorGraphicsView
	The graphics view for drawing the curves.

QHBoxLayout *	m_hboxLayout
	The layout for horizontal arranging the tree an drawing region.

QTreeWidget *	m_dataTree
	The tree widget visualizing the databases.

QIcon	m_muteIcon
	The mute icon for the data tree.

Additional Inherited Members
Public Types inherited from Frapper::ViewPanel
enum	Type { T_Documentation, T_Viewport, T_NetworkEditor, T_HierarchyEditor, T_ParameterEditor, T_CurveEditor, T_Timeline, T_PluginPanel, T_PainterPanel, T_NumTypes }
	Nested enumeration for the different types of view panels. More...

Static Public Member Functions inherited from Frapper::Panel
static QString	getTypeName (Type panelType)
	Returns the name of the given panel type.

static QString	getTypeIconName (Type panelType)
	Returns the icon name for the given panel type.

Protected Attributes inherited from Frapper::Panel
QMap< QString, QString >	m_parameterMap
	Map with default values. For load and save functionality.

Detailed Description

Class for a panel that contains a curve editor widget for displaying number parameters.

Constructor & Destructor Documentation

Frapper::CurveEditorPanel::CurveEditorPanel	(	QWidget *	parent = `0`,
		Qt::WindowFlags	flags = `0`
	)

Constructor of the CurveEditorPanel class.

Constructors and Destructors.

Parameters

parent	The parent widget the created instance will be a child of.
flags	Extra widget options.

Constructor of the CurveEditorPanel class.

Parameters

parent	The parent widget the created instance will be a child of.
flags	Extra widget options.

Frapper::CurveEditorPanel::~CurveEditorPanel ( )

virtual

Destructor of the CurveEditorPanel class.

Defined virtual to guarantee that the destructor of a derived class will be called if the instance of the derived class is saved in a variable of its parent class type.

Member Function Documentation

void Frapper::CurveEditorPanel::fillToolBars	(	QToolBar *	mainToolBar,
		QToolBar *	panelToolBar
	)

virtual

Fills the given tool bars with actions for the curve editor panel.

Public Functions.

Parameters

mainToolBar	The main tool bar to fill with actions.
panelToolBar	The panel tool bar to fill with actions.

Fills the given tool bars with actions for the curve editor panel.

Parameters

mainToolBar	The main tool bar to fill with actions.
panelToolBar	The panel tool bar to fill with actions.

Reimplemented from Frapper::Panel.

void Frapper::CurveEditorPanel::updateTree ( bool objectsSelected )

slot

Slot that is called when the selection in the scene model has changed.

Public Slots.

Parameters

objectsSelected Flag that states whether objects in the scene are selected.

Slot that is called when the selection in the scene model has changed.

Parameters

objectsSelected Flag that states whether objects in the scene are selected.

void Frapper::CurveEditorPanel::buildTree ( Node * node )

slot

Initializes the Selection Tree.

Parameters

node	The node whose animated parameters to display in the curve editor.

void Frapper::CurveEditorPanel::showCurves ( )

slot

Displays the curves of the given node in the curve editor.

void Frapper::CurveEditorPanel::setCurrentFrame ( const int index ) const

slot

Sets the index of the current frame in the scene's time.

Parameters

index The new index of the current frame in the scene's time.

void Frapper::CurveEditorPanel::changeKeyValues ( )

slot

Sets the value of the selected Keys.

void Frapper::CurveEditorPanel::scaleKeyValues ( )

slot

Scales the value of the selected Keys.

void Frapper::CurveEditorPanel::normalizeKeyValues ( )

slot

Scales the values of the shown curve to a maximum of one.

void Frapper::CurveEditorPanel::muteSelectedParameterGroups ( )

slot

Mutes/unmutes the in treeView selected Parameters.

void Frapper::CurveEditorPanel::muteAllParameterGroups ( )

slot

Mutes/unmutes all treeView Parameters.

Mutes all treeView Parameters.

void Frapper::CurveEditorPanel::unmuteAllParameterGroups ( )

slot

Unmutes all treeView Parameters.

void Frapper::CurveEditorPanel::updateAllParameters ( )

slot

Updates all treeView Parameters.

void Frapper::CurveEditorPanel::drag ( )

signal

Signal that is emitted when a drag event is emited.

void Frapper::CurveEditorPanel::muteItems ( QTreeWidgetItem * item )

private

Changes color and icon of selected treeView Items and chids.

Privata Functions.

Fills the tree view with node data groups

Parameters

rootData	the root parameter group containing the data
rootItem	the QTreeWidgetItem to add the data Changes color and icon of selected treeView Items and chids

void Frapper::CurveEditorPanel::unmuteItems ( QTreeWidgetItem * item )

private

Changes color and icon of selected treeView Items and chids.

void Frapper::CurveEditorPanel::updateItems ( )

private

Updates color and icon of selected treeView Items and chids.

void Frapper::CurveEditorPanel::fillTree	(	ParameterGroup *	rootData,
		QTreeWidgetItem *	rootItem
	)

private

Fills the tree view with node data groups.

Parameters

root	the root parameter group of the selected node

void Frapper::CurveEditorPanel::keyPressEvent ( QKeyEvent * event )

protected

Handles key press events for the widget.

Protected Events.

Parameters

event The description of the key event.

Handles key press events for the widget.

Parameters

event The description of the key event.

Member Data Documentation

QDoubleSpinBox* Frapper::CurveEditorPanel::m_normalizeSpinBox

private

Line edit value for key value overwrite.

QDoubleSpinBox* Frapper::CurveEditorPanel::m_valueSpinBox

private

Line edit value for key value overwrite.

QDoubleSpinBox* Frapper::CurveEditorPanel::m_scaleSpinBox

private

Line edit value for key value overwrite.

QCheckBox* Frapper::CurveEditorPanel::m_curveCheckBox

private

Checkbox which enables/disables view flag for enabled/disabled parameters.

CurveEditorGraphicsView* Frapper::CurveEditorPanel::m_curveEditorGraphicsView

private

The graphics view for drawing the curves.

QHBoxLayout* Frapper::CurveEditorPanel::m_hboxLayout

private

The layout for horizontal arranging the tree an drawing region.

QTreeWidget* Frapper::CurveEditorPanel::m_dataTree

private

The tree widget visualizing the databases.

QIcon Frapper::CurveEditorPanel::m_muteIcon

private

The mute icon for the data tree.

The documentation for this class was generated from the following files:
